Contact our U.S. based teamSpecifications
Product Information

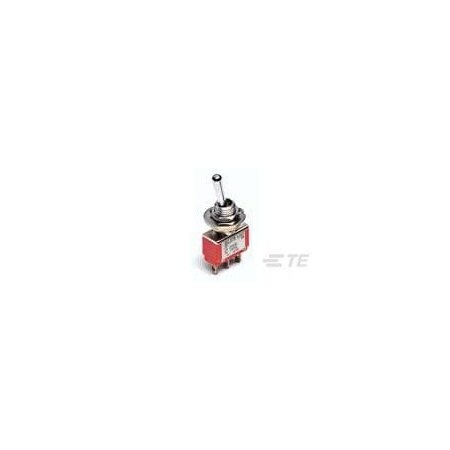

MFR #
3-1825136-7
Zoro #
G401009678
UPC #
-
Country of Origin
United States
Dimensions
Bushing Length (in)
0.28
Toggle Length
12.19 mm [ .48 in ]
Details
Switch Type
Toggle
Termination Type
Vertical Support Bracket
Actuator Finish
Nickel
Toggle Style
Baton Long
Voltage Rating
125 VAC, 28 VDC
Process Sealed
No
Contact Base Material
Copper
Operating Function
On On
Contact Resistance (mΩ)
10
Product Type
Switch
Contact Plating
Silver
Contact Current Rating (A)
5
Toggle Actuation
Vertical
Insulation Resistance (MΩ)
1000
Seal Type
Terminal Seal (Epoxy)
UL Flammability Rating
UL 94V-1
Mounting Type
Through Hole
Sealed
Yes
Configuration (Pole-Throw)
Single Pole - Double Throw
Bushing Style
Unthreaded
Dielectric Strength (VAC)
1000
