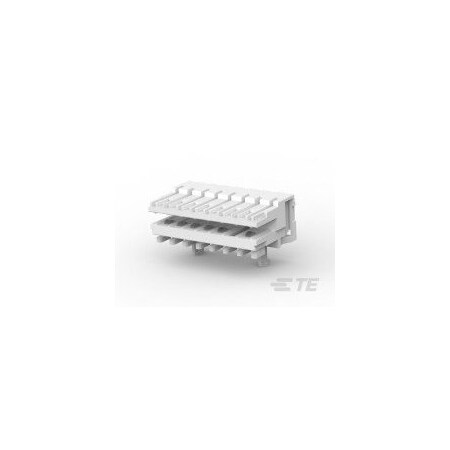

AMP DUOPLUG MK2 CONNECTOR 7P SELECTIVE (Discontinued)
- Mfr # 4-1534798-7
- Zoro # G201043810
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
4-1534798-7
Zoro #
G201043810
UPC #
-
Country of Origin
United States
Dimensions
Max. Single Wire Size
22 AWG
Min. Single Wire Size
24 AWG
Height
7.3 mm
Max. Insulation Dia.
0.063 in
Contact Plating Thickness
3 to 6 µm
Details
Item
Connector
Max. Temp.
110°C
Max. Voltage
250V
Application
Signal
Hole Center to Center
2.5 mm
Color
Natural
Material
Glass-Filled Polyamide
Terminal Type
Insulation Displacement Crimp
For Use With
Tab Header; PCB Frame
Wire Type
Stranded
Connector Type
Card Edge
Connection Material
Copper Tin
Number of Rows
1
Contact Type
Socket
Current Rating
2 A
Terminal Finish
Tin Plated
Number of Contacts
7
Contact Finish
Tin Plated
Connector Terminates To
Printed Circuit Board
