This item is Discontinued.

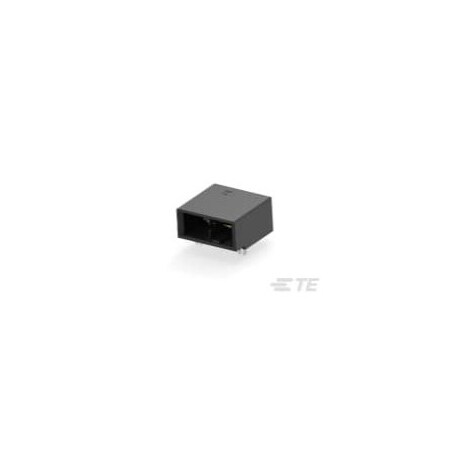

Te Connectivity DYNAMIC 4200S HDR ASSY H 2P Y 2-1903328-2

DYNAMIC 4200S HDR ASSY H 2P Y (Discontinued)

  • Mfr # 2-1903328-2
  • Zoro # G000939109
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2-1903328-2
Zoro #
G000939109
UPC #
-
Country of Origin
China

Dimensions

Width
0.858 in
Height
10.4 mm
Length
15.02 mm

Details

Item
Connector
Type
Header
Color
Black
Insulation Material
Glass-Filled Polyester
Max. Voltage
600V AC/DC
Maximum Voltage
600 V AC/DC
Current
24 A
Series
4000
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Terminal Type
Through Hole - Solder
Material
Glass-Filled Polyester
Max. Temp.
105°C
Green Environmental Attribute
Halogen Free
For Use With
Receptacle Housing
Features
Shrouded
Connector Type
Header
Hole Center to Center
0.249 in
Contact Type
Tab
Contact Finish
Gold Plated
Number of Rows
1
Number of Contacts
2
Current Rating
24 A
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated
Termination Style
Through Hole - Solder

Description
