Product Information
MFR #
1-1747277-3
Zoro #
G000937358
UPC #
-
Country of Origin
China
Dimensions
Width
0.409 in
Height
23.8 mm
Length
1.12 in
Contact Plating Thickness
0.38 µm
Details
Item

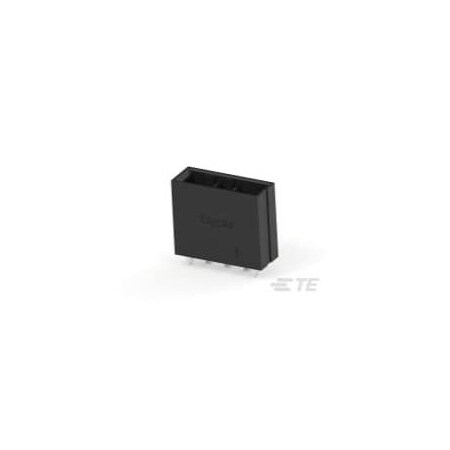

PCB Mount Header
Color
Black
Max. Voltage
600V AC/DC
Maximum Voltage
600 V AC/DC
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Material
Glass-Filled Polyester
For Use With
Receptacle Housing
Hole Center to Center
6.35 mm
Max. Temp.
105°C
Connection Material
Copper Alloy
Features
Shrouded
Contact Type
Tab
Contact Finish
Gold Plated
Number of Rows
1
Current Rating
23 A
Number of Contacts
3
Flammability Rating
UL 94 V-0
Terminal Finish
Tin Plated
Connector Terminates To
Printed Circuit Board
