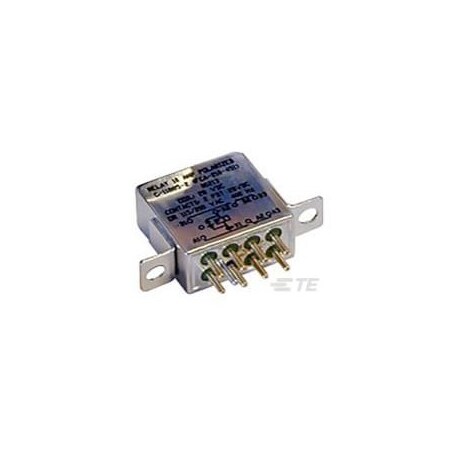

FCA-215-HX3=DPDT 15A MID-RANGE RELAY (Discontinued)
- Mfr # 4-1617810-3
- Zoro # G600979765
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
4-1617810-3
Zoro #
G600979765
UPC #
-
Country of Origin
India
Details
Mounting Type
Horizontal Flange Mount
Operating Temperature Range
-70 to 125°C
Vibration
30G's, 33 to 3000Hz
Back EMF Suppression
Without
Contact Arrangement
2 Form C, DPDT, 2 C/O
Product Type
Relay
Contact Current Rating
15 A
Relay Type
Military/Aerospace Mid-Range
Shock
200G's, 6ms
Coil Suppression Diode
Without
Coil Resistance
320 Ω
Enclosure Type
Hermetically Sealed
Terminal Plating
Tin-Lead
Actuating System
DC
Terminal Configuration
Solder Pins, 90°
Coil Voltage Rating
28 VDC
Contact Base Material
Silver Cadmium Oxide
Coil Magnetic System
Polarized, Monostable
Auxiliary Contacts
Without
