This item is Discontinued.

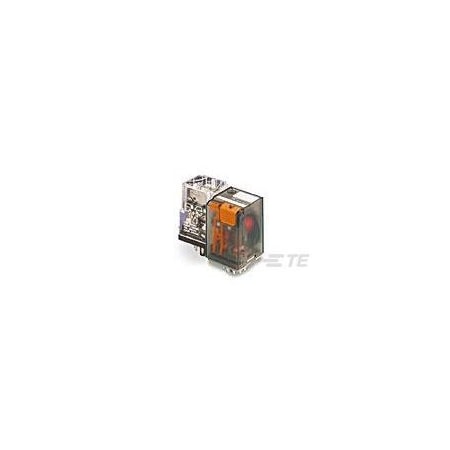

Te Connectivity KRPA-14AG-120=KRPA 6-1393104-5

KRPA-14AG-120=KRPA (Discontinued)

  • Mfr # 6-1393104-5
  • Zoro # G300975814
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6-1393104-5
Zoro #
G300975814
UPC #
-
Country of Origin
China

Dimensions

Height Class (Mechanical)
50 to 60 mm
Width Class (Mechanical)
30 to 40 mm
Product Width
1.405 in
Length Class (Mechanical)
35 to 40 mm
Product Length
1.406 in
Product Height
2 in

Details

Contact Material
AgCdO
Coil Magnetic System
Monostable, AC
Insulation Initial Dielectric Between Contacts & Coil
1000 Vrms
Contact Limiting Making Current
10A
Coil Special Features
UL Coil Insulation Class B
Contact Switching Load (Min)
300mA @ 12V
Insulation Initial Resistance
1000 MΩ
Coil Power Rating AC
2.1 VA
Environmental Ambient Temperature Class
50 to 70°C
Contact Current Rating (Max)
10A
Contact Arrangement
3 Form C (CO)
Actuating System
AC
Contact Current Class
5 to 10 A, 16 A
Coil Power Rating Class
2 to 3 VA
Environmental Ambient Temperature (Max)
55°C
Contact Voltage Rating
240 VAC
Insulation Initial Dielectric Between Open Contacts
1000 Vrms
Contact Number of Poles
3
Environmental Category of Protection
RTI
Power Relay Type
Industrial Panel Plug-In
Operating Temperature Range
-45 to 55°C
Contact Limiting Breaking Current
10A
Coil Voltage Rating
120 VAC
Terminal Type
Plug-In
Contact Limiting Short-Time Current
10A
Relay Mounting Type
Socket
Coil Resistance
2250 Ω
Contact Limiting Continuous Current
10A
Insulation Initial Dielectric Between Adjacent Contacts
1000 Vrms
Insulation Initial Dielectric Between Coil & Contact Class
500 to 1000 V
