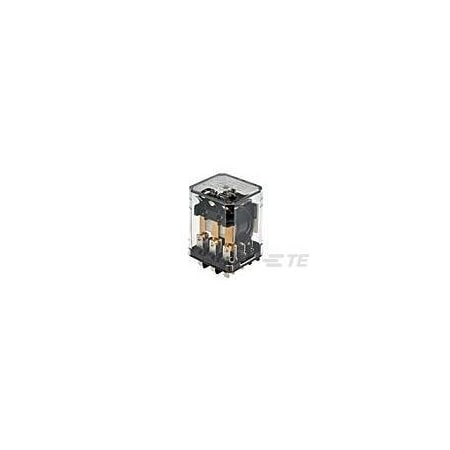

Te Connectivity PCB, Socket, General Purpose Relay, 10 A, Quick Connect, Solder 8-1393118-2

PCB, Socket, General Purpose Relay, 10 A, Quick Connect, Solder (Discontinued)

  • Mfr # 8-1393118-2
  • Zoro # G600976979
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8-1393118-2
Zoro #
G600976979
UPC #
-
Country of Origin
Mexico

Dimensions

Product Width
1.405 in
Width Class (Mechanical)
30 to 40 mm
Product Height
1.905 in
Product Length
1.55 in
Length Class (Mechanical)
35 to 40 mm
Height Class (Mechanical)
40 to 50 mm

Details

Item
General Purpose Relay
Mounting Style
PCB, Socket
Electrical Connection
Quick Connect, Solder
Coil Voltage
24V AC
Current Rating
10 A
Contact Form
3PDT
Contact Material
AgCdO
Actuating System
AC
Contact Limiting Short-Time Current
10A
Coil Magnetic System
Monostable, AC
Insulation Initial Resistance
100 MΩ
Contact Number of Poles
3
Environmental Ambient Temperature Class
0 to 50°C
Contact Limiting Breaking Current
10A
Contact Limiting Making Current
10A
Contact Current Class
16 A, 5 to 10 A
Insulation Initial Dielectric Between Coil & Contact Class
1000 to 1500 V
Environmental Category of Protection
RTI
Contact Arrangement
3 Form C (3PDT)
Contact Voltage Rating
240 VAC, 28 VDC
Contact Limiting Continuous Current
10A
Contact Switching Load (Min)
300mA @ 12V
Coil Resistance
72 Ω
Contact Current Rating (Max)
10A
Power Relay Type
Industrial Panel Plug-In
Coil Power Rating AC
2.7 VA
Insulation Initial Dielectric Between Contacts & Coil
1500 Vrms
Operating Temperature Range
-45 to 45°C
Insulation Initial Dielectric Between Adjacent Contacts
1500 Vrms
Insulation Initial Dielectric Between Open Contacts
500 Vrms
Environmental Ambient Temperature (Max)
45°C
Coil Power Rating Class
2 to 3 VA
