  11. MINI CT SGL RELAY 17P NAT
This item is Discontinued.

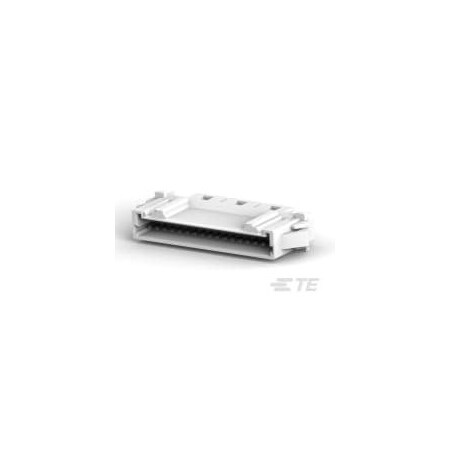

Te Connectivity MINI CT SGL RELAY 17P NAT 1-292215-7

MINI CT SGL RELAY 17P NAT (Discontinued)

  • Mfr # 1-292215-7
  • Zoro # G400973406
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-292215-7
Zoro #
G400973406
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
28 AWG
Width
0.263 in
Height
11.8 mm
Max. Single Wire Size
24 AWG
Length
1.322 in
Max. Insulation Dia.
0.041 in
Contact Plating Thickness
1 µm
Minimum Single Wire Size
28 AWG
Maximum Single Wire Size
24 AWG

Details

Item
Connector
Color
White
Max. Voltage
50V AC/DC
Maximum Voltage
50 V AC/DC
Current
2 A
Standards
UL 94V-0; CSA Certified; UL E28476
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Material
Nylon
Max. Temp.
105°C
Features
Panel Mount Feature
Connector Type
Plug
Connection Material
Brass
Hole Center to Center
1.5 mm
Wire Type
Discrete
Flammability Rating
UL 94 V-0
Number of Contacts
17
Current Rating
2 A
Contact Type
Pin
Number of Rows
1
Contact Finish
Tin Plated
