Product Information
MFR #
1461869-3
Zoro #
G901017005
UPC #
-
Country of Origin
China
Details

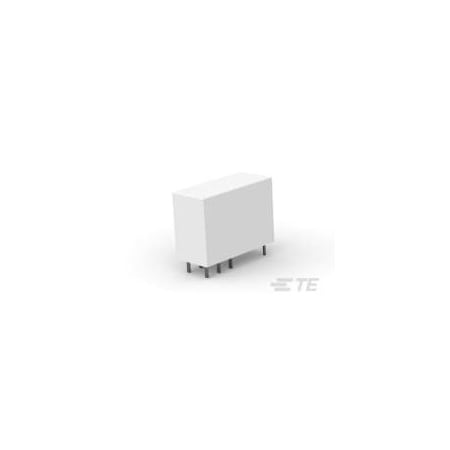

Item
Power Relay
Mounting Style
Printed Circuit Board
Electrical Connection
PCB-THT
Coil Voltage
12V DC
Contact Form
1 Form C (CO)
Features
Sensitive Version, UL Coil Insulation Class A
Number of Poles
1
Power Consumption - Relay
540 mW
Contact Material
AgCdO
Switching Current
100mA @ 5V
Contact Voltage Rating
240 VAC
Coil Resistance
267 Ω
Coil Type
Monostable, DC
Operating Temp. Range
50 to 70°C
Contact Limiting Short-Time Current
16 A
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Switching Voltage
24 VDC, 240 VAC
Contact Limiting Breaking Current
16 A
Insulation Clearance
.217 in
Contact Limiting Continuous Current
16 A
Protection Category
RTII
Insulation Creepage
.315 in
Contact Limiting Making Current
16 A
Contact Rating
16 A
