  11. PWR TB 2PIN 2P 15.00 PCB-FLANGE

This item is Discontinued.

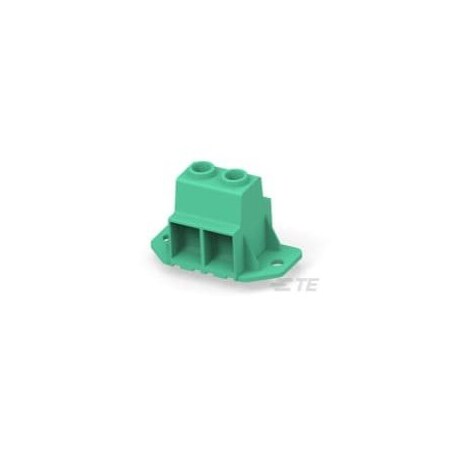

Te Connectivity PWR TB 2PIN 2P 15.00 PCB-FLANGE 1986715-2

PWR TB 2PIN 2P 15.00 PCB-FLANGE (Discontinued)

  • Mfr # 1986715-2
  • Zoro # G100946076
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1986715-2
Zoro #
G100946076
UPC #
-
Country of Origin
Italy

Dimensions

Pin Length
.197 in
PCB Tail Length
.197 in
Screw Size
M5

Details

Housing Color
Green
Wire Range
20 to 1 AWG
Voltage
600 VAC
Connector System
Wire-to-Board
Housing Material
PA 66
Screw Flange
With
Interlock
Without
Centerline (Pitch)
.591 in
Mounting Angle
Vertical
Wire Entry Angle
Side
Contact Current Rating (Max)
130 A
Connector Mounting Type
Board Mount
Number of Rows
2
Number of Positions
2
Contact Mount
Through Hole
Header Type
Header Only
Operating Temperature Range
-40 to 110°C
Circuit Application
Power & Signal
Current Rating (Max)
130 A
Threaded Flange
Without
Connector Style
Header
Screw Material
Steel
Side Stackable
Yes
Connector & Contact Terminates To
Printed Circuit Board
Contact Base Material
Brass
Wire Protection
With
Screw Plating Material
Nickel
Block Type
Straight
Contact Mating Area Plating Material
Tin
Screwless Terminal Block
No
