Product Information
MFR #
1-1415899-9
Zoro #
G701026313
UPC #
-
Country of Origin
Austria
Details
Item

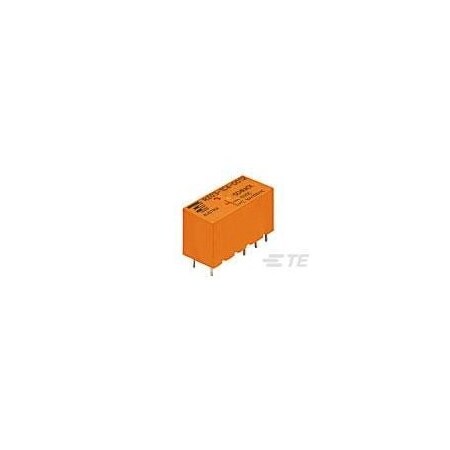

PCB Relay
Mounting Style
PCB
Electrical Connection
PCB-THT
Coil Voltage
5V DC
Contact Form
1 Form C (CO)
Number of Poles
1
Contact Material
AgNi90/10
Power Consumption - Relay
420 mW
Features
UL Coil Insulation Class F
Contact Limiting Short-Time Current
16A
Contact Limiting Breaking Current
16A
Insulation Creepage
10 mm [ .394 in ]
Coil Resistance
60 Ω
Contact Voltage Rating
250V AC
Operating Temp. Range
70 to 85°C
Coil Type
Monostable, DC
Switching Voltage
400V AC
Contact Limiting Making Current
30A
Contact Rating
16A
Contact Limiting Continuous Current
16A
Protection Category
RTII
Insulation Clearance
10 mm [ .394 in ]
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
