  11. TERMI-BLOK PCB MOUNT 8P
This item is Discontinued.

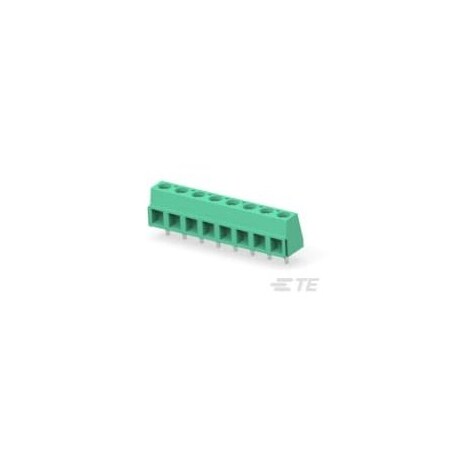

Te Connectivity TERMI-BLOK PCB MOUNT 8P 282837-8

TERMI-BLOK PCB MOUNT 8P (Discontinued)

  • Mfr # 282837-8
  • Zoro # G700929943
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
282837-8
Zoro #
G700929943
UPC #
-
Country of Origin
Italy

Dimensions

Screw Size
M3
PCB Tail Length
.138 in

Details

Voltage
300 VAC
Block Type
Stacking w/interlock
Contact Base Material
Brass
Screw Plating Material
Nickel
Wire Protection
With
Contact Mount
Through Hole
Screwless Terminal Block
No
Housing Color
Green
Operating Temperature Range
-40 to 230°F
Number of Rows
1
Wire Range
30 to 16 AWG
Connector Style
Header
Interlock
With
Closed End
Without
Number of Positions
8
Mounting Angle
Vertical
Screw Flange
Without
Connector & Contact Terminates To
Printed Circuit Board
Connector System
Wire-to-Board
Circuit Application
Power & Signal
Contact Current Rating (Max)
13.5 A
Stacked Levels
Without
Current Rating (Max)
13.5 A
Side Stackable
Yes
Screw Material
Brass
Wire Entry Angle
Side
Centerline (Pitch)
.2 in
Housing Material
PA 66
Contact Mating Area Plating Material
Tin
Connector Mounting Type
Board Mount
