Contact our U.S. based teamSpecifications
Product Information
MFR #
1393777-2
Zoro #
G901033654
UPC #
-
Country of Origin
Germany
Details
Item

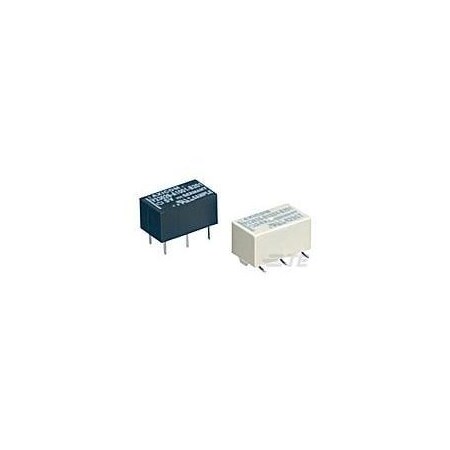

PCB Relay
Electrical Connection
Surface Mount
Power Consumption - Relay
30 to 150 mW
Number of Poles
1
Item - Relay
P1 Relay V23026
Features
Bifurcated/Twin Contacts
Contact Limiting Making Current
1A
Contact Limiting Breaking Current
1A
Switching Voltage
125 VDC, 150 VAC
Contact Limiting Continuous Current
1A
Coil Resistance
1200 Ω
Dielectric Voltage
1500 Vrms Coil and Contact; 500 Vrms Open Contacts
Insulation Clearance
.0295 in
Insulation Creepage
.0295 in
Contact Voltage Rating
150 VAC, 125 VDC
Coil Type
Bistable, 2 Coils, Polarized
Switching Current
10mA @ .02V
Protection Category
RTIII
Operating Temp. Range
-40 to 85°C
Contact Limiting Short-Time Current
1A
