Product Information
MFR #
1-1415012-1
Zoro #
G401033833
UPC #
-
Country of Origin
Czechia
Details

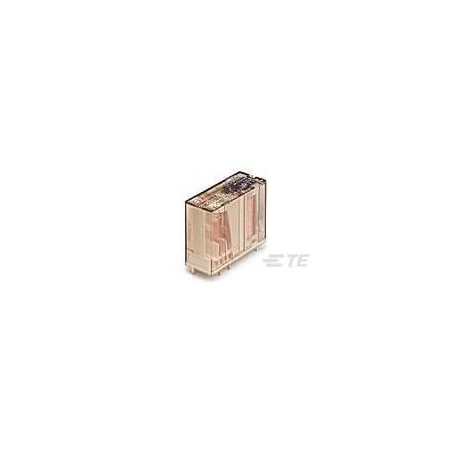

Item - Relay
Force Guided Relay SR2M
Number of Poles
2
Coil Volts
110V DC
Contact Form - Relay
2 Form C (CO)
Features
Force Guided Contacts
Contact Material
AgNi
Power Consumption - Relay
700 mW
Contact Limiting Short-Time Current
6A
Protection Category
RTIII
Dielectric Voltage
3000 Vrms Adjacent Contacts; 4000 Vrms Coil and Contact; 1500 Vrms Open Contacts
Insulation Creepage
8 mm [ .315 in ]
Operating Temp. Range
-25 to 70°C
Insulation Clearance
8 mm [ .315 in ]
Contact Limiting Continuous Current
6A
Contact Limiting Making Current
6A
Mounting Type
Printed Circuit Board
Switching Current
10mA @ 5V
Coil Type
Monostable, DC
Contact Limiting Breaking Current
6A
Terminal Type
PCB-THT
Contact Rating
6A
Coil Resistance
17285 Ω
Contact Voltage Rating
250V AC
Switching Voltage
400V AC
