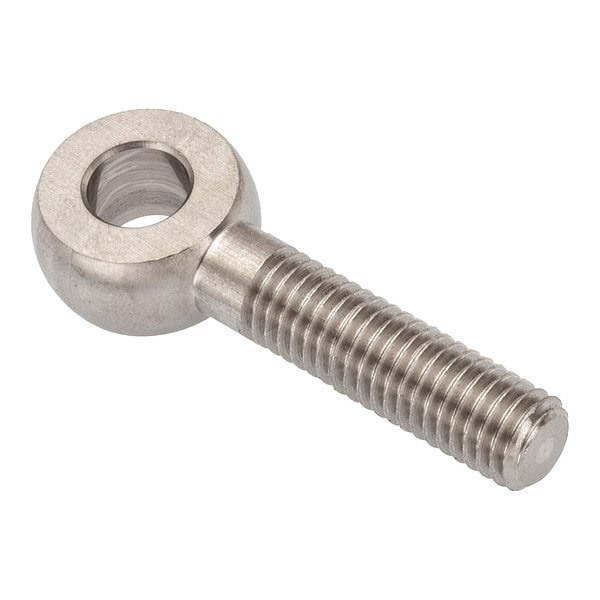

Fixed Rod End, Stainless Steel, Plain, M10-1.50 Thrd Sz, 42 mm Thrd Lg
Mfr # ZEBM10X60
Zoro # G810881476
product price:Â $25.19
/eaKey Features
Material
Stainless Steel
Material Grade/Class
304
Finish
Plain
Eye Inside Diameter
10 mm
Eye Thickness
12 mm
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- ZEBM10X60
- Zoro #
- G810881476
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Eye Inside Diameter
- 10 mm
- Eye Thickness
- 12 mm
- Eye Outside Diameter
- 20 mm
- Hole Center-to-End Length
- 60 mm
- Thread Length
- 42 mm
- Thread Size
- M10-1.50
- Ball Diameter
- 10 mm
- Head Width
- 12 mm
- Shank Thread Length
- 42 mm
- Shank Thread Size
- M10-1.5
- Head Outside Diameter
- 20 mm
- Bore Diameter
- 10 mm
- Overall Length
- 70 mm
- Screw Size
- 10 mm
- Shank Length
- 50 mm
- Shank Diameter
- 10 mm
Description
Fixed Rod End, Eye Inside Diameter 10 mm, Eye Outside Diameter 20 mm, Eye Thickness 12 mm, Plain, Stainless Steel, Material Grade/Class 304, Material Quality Standards ASTM A582, REACH Compliant Yes, Hole Center-to-End Length 60 mm, RoHS Compliant Yes, Shank Diameter 10 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 42 mm, Thread Pitch 1.5 mm, Thread Size M10-1.50, Shank Length 50 mm, Externally Threaded, Shoulder Style Without Shoulder
