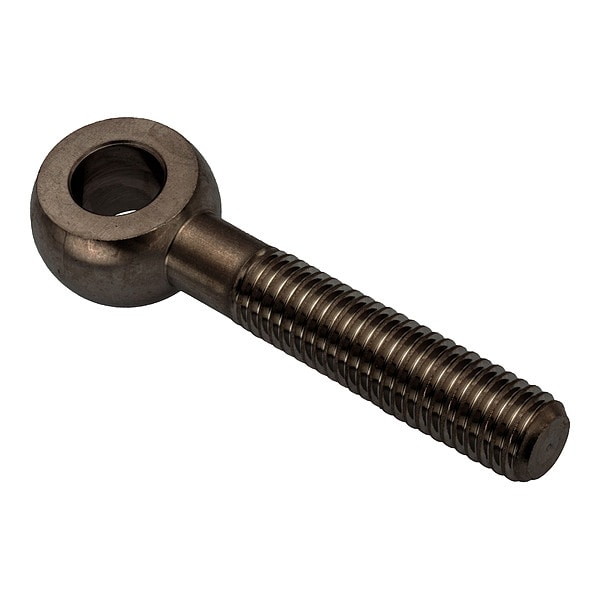

Fixed Rod End, Steel, Black Oxide, M24-3.00 Thrd Sz, 88 mm Thrd Lg
Mfr # ZEBM24X120-STL-BX
Zoro # G310881013
product price:Â
$
317.99
/ea
Free Shipping & Returns
Key Features
Material
Steel
Material Grade/Class
12L14
Finish
Black Oxide
Eye Inside Diameter
22 mm
Eye Thickness
25 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZEBM24X120-STL-BX
- Zoro #
- G310881013
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Eye Inside Diameter
- 22 mm
- Eye Thickness
- 25 mm
- Eye Outside Diameter
- 45 mm
- Hole Center-to-End Length
- 120 mm
- Thread Length
- 88 mm
- Thread Size
- M24x3.00
- Shank Thread Length
- 88 mm
- Ball Diameter
- 22 mm
- Bore Diameter
- 22 mm
- Head Outside Diameter
- 45 mm
- Head Width
- 25 mm
- Shank Thread Size
- M24-3.0
- Overall Length
- 142.5 mm
- Shank Diameter
- 24 mm
- Screw Size
- 24 mm
- Shank Length
- 97 1/2 mm
- Wire Rope Length
- 142.5 mm
- Minimum Thread Length
- 88 mm
- Length
- 142.5 mm
Description
Fixed Rod End, Eye Inside Diameter 22 mm, Eye Outside Diameter 45 mm, Eye Thickness 25 mm, Black Oxide, Steel, Material Grade/Class 12L14, Material Quality Standards ASTM A576, REACH Compliant Yes, Hole Center-to-End Length 120 mm, RoHS Compliant Yes, Shank Diameter 24 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 88 mm, Thread Pitch 3 mm, Thread Size M24x3.00, Shank Length 97 1/2 mm, Externally Threaded, Shoulder Style Without Shoulder
