  13. Lever Lockset, Mechanical, Grade 1

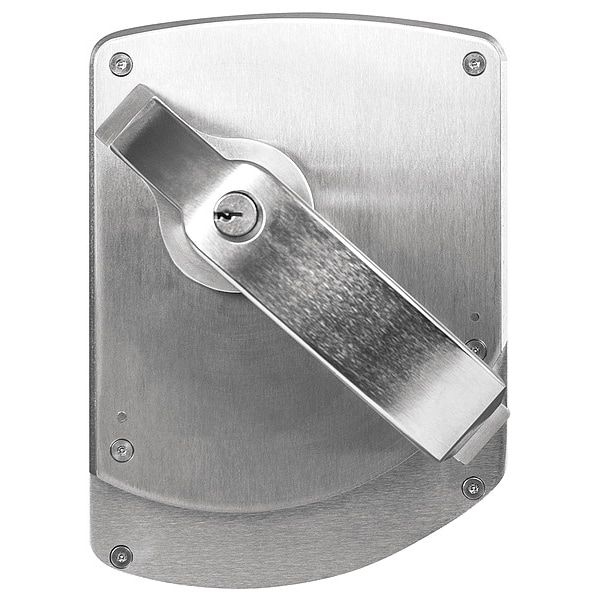

Ampg Lever Lockset, Mechanical, Grade 1 CH-CYL-ASY US32D LH - main

Lever Lockset, Mechanical, Grade 1

  • Mfr # CH-CYL-ASY US32D LH

  • Zoro # G4260558

product price: $2,625.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Institutional
Lockset Grade
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CH-CYL-ASY US32D LH
Zoro #
G4260558
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in
Door Thickness - Maximum
1 3/4 in
Strike Plate Width
1 1/8 in
Strike Plate Height
2 1/4 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Institutional
Lockset Grade
1
Style
Standard Bow
Lockset Finish
Stainless Steel
Keyway Type
Less Cylinder
Key Type
Keyed Alike
Strike Dim.
4-7/8 in
Lockset Performance Strength
Standard Duty
Cylinder Core Type
Cylinder with Schlage "C" Keyway
Standards
ANSI, BHMA, UL Listed
Key Material
Nickel Silver
ADA Compliant
Yes
Strike Type
ASA
Handle Material
Stainless Steel
Ligature Resistant
Yes
Number of Keys
2
Location Type
Behavioral Health, Detention Facility
Mortise/Cylindrical
Cylindrical
Backset
2 3/4 in
Lockset Fire Rating
3 hr
Series
CH-CYL
Number of Pins
6
Item
Door Lockset
Fire Rating - Door Hardware
3 hr
Visual Indicator Message
No Message
ANSI Grade
1
Fire Rating
3 hr
Performance Grade
1
ANSI/BHMA Finish
Satin Stainless Steel
Lockset Style
Standard Bow
Ligature-Resistant
Ligature-Resistant
Lockset Type
Electrical/Mechanical
Knob/Handle Material
Stainless Steel
Locking/Unlocking Access - Inside
Keyway
Lockset Function ANSI Code
F87
Locking/Unlocking Access - Outside
Keyway
Hand Orientation
Non-Handed
Application
Institutional

Description

Lever Lockset,Mechanical,Grade 1
