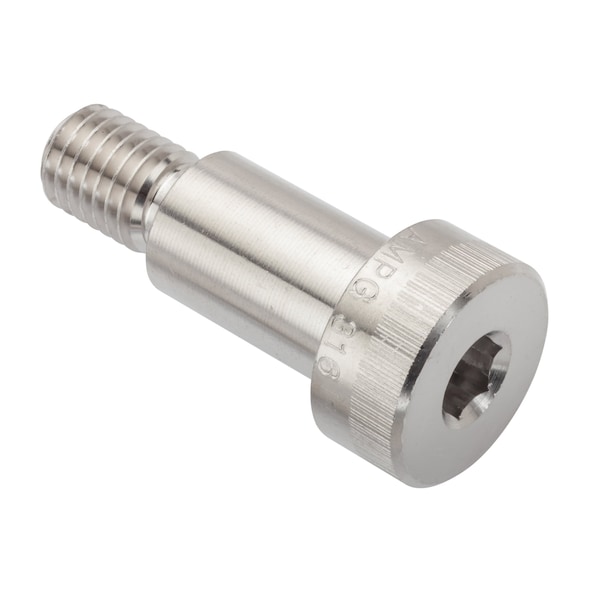

Shoulder Screw, 316 SS, M12x1.75mm, 25mm L, 5g6g Thr Sz, 18mm Thr Lg, 25mm Shoulder Lg
Mfr # STR602M16X25
Zoro # G6453855
product price:Â
$
20.29
/ea
Key Features
Socket Head
Hex Drive
System of Measurement
Metric
Thread Size
M12x1.75
Shoulder Diameter
16 mm
Shoulder Length
25 mm
Drive Size
8 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- STR602M16X25
- Zoro #
- G6453855
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- M12x1.75
- Shoulder Diameter
- 16 mm
- Shoulder Length
- 25 mm
- Drive Size
- 8 mm
- Head Diameter
- 24 mm
- Head Height
- 11 mm
- Thread Length
- 18mm
- Shoulder Dia.
- 16mm
- Shoulder Length Tolerance
- +0.250/-0.000 mm
- Shoulder Diameter Tolerance
- -15.98 to 15.94 mm
- Minimum Thread Length
- 18 mm
- Overall Length
- 43 mm
- Wire Rope Length
- 43 mm
- Length
- 43 mm
Description
Shoulder Screw, Shoulder Screw Type Precision Shoulder Screw, Head Type Hex, Drive Type Socket, Material Stainless Steel, Material Grade/Class 316, Finish Black Oxide, System of Measurement Metric, Thread Size M12x1.75, Minimum Thread Length 18 mm, Shoulder Length 25 mm, Shoulder Length Tolerance +0.250/-0.000 mm, Shoulder Diameter 16 mm, Shoulder Diameter Tolerance -15.98 to 15.94 mm, Head Height 11 mm, Head Diameter 24 mm, Dimensional Standards ANSI/ASME B18.3.3M, ISO 7379
