  6. Pin & Sleeve Plug, 13 A, 600V AC, 4 Pole, Screw Terminals Wire Connection Type

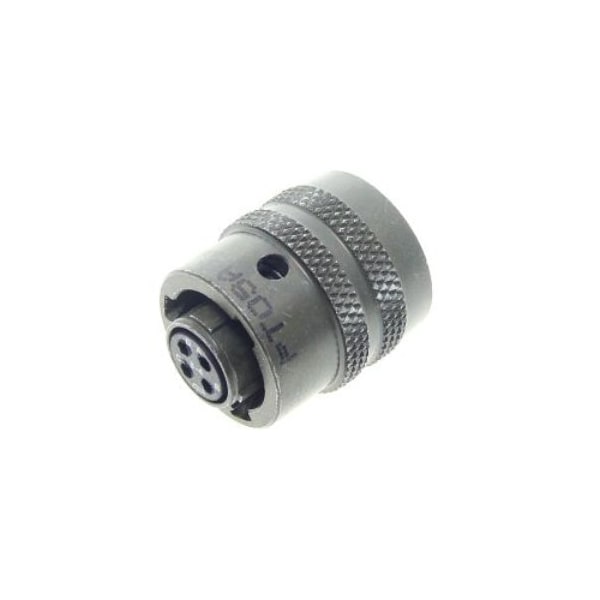

Amphenol Pin & Sleeve Plug, 13 A, 600V AC, 4 Pole, Screw Terminals Wire Connection Type PT05A84S - main

Pin & Sleeve Plug, 13 A, 600V AC, 4 Pole, Screw Terminals Wire Connection Type

  • Mfr # PT05A84S

  • Zoro # G507164035

product price:  $14.15
/ea

Key Features

Current Rating
13 A
Voltage Rating
600V AC
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PT05A84S
Zoro #
G507164035
UPC #
-
Country of Origin
United States

Dimensions

Contact Size
4#20

Details

Item
Pin & Sleeve Plug
Current Rating
13 A
Voltage Rating
600V AC
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Cap Type
No Cap or Cover
Standards
MIL-DTL-26482
Mounting Type
Cable
No. of Contacts
4
Contact Mating Life
500
Connector Type
Circular
Contact Plating
Gold
Operating Temperature °F (°C)
-67 to +257 (-55 to +125)
Shell Plating
Olive Drab Cadmium
Grommet & Seals Material
Neoprene
Shell Material
Aluminum Alloy
Insert Arrangement
45142
Sealing
Unsealed
Specification
MIL-DTL-26482
Operating Voltage AC V RMS Max
600
Shielding
Yes
Insert Rotation/Keying
Normal
Shell Color
Olive Drab
Contacts Supplied
Yes
Contact Material
Copper Alloy
Service Rating
I
Operating Voltage DC
850
Contact Style
Socket
Insert Material
Neoprene
Connector Style
Plug
