  5. Analog Clamp Meter, Rotary Scale, 1,000 A, 1.9 in (48 mm) Jaw Capacity, CAT IV 600V Safety Rating

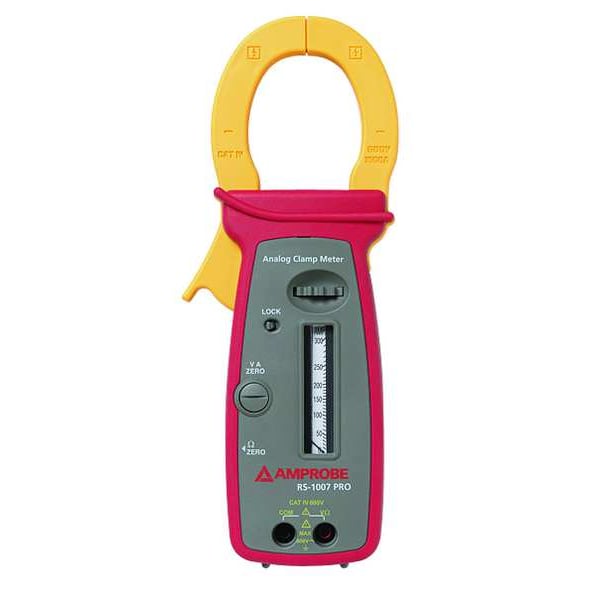

Amprobe Analog Clamp Meter, Rotary Scale, 1,000 A, 1.9 in (48 mm) Jaw Capacity, CAT IV 600V Safety Rating RS-1007 PRO - main

Analog Clamp Meter, Rotary Scale, 1,000 A, 1.9 in (48 mm) Jaw Capacity, CAT IV 600V Safety Rating

  • Mfr # RS-1007 PRO

  • Zoro # G1657607

product price:  $319.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Analog
Clamp Meter Jaw Style
Clamp On
Max. Ohms
1,000
Jaw Capacity
1.9 in (48 mm)
Safety Rating
CAT IV 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RS-1007 PRO
Zoro #
G1657607
UPC #
095969497725
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
AAA

Details

Item
Analog Clamp Meter
Digital/Analog
Analog
Max. AC Amps
1,000
Clamp Meter Jaw Style
Clamp On
Max. Ohms
1,000
Jaw Capacity
1.9 in (48 mm)
Safety Rating
CAT IV 600V
Display
Rotary Scale
Jaw Opening
1.88 in
Max. AC Volts
600 V
Calibration Frequency
50/60 Hz
Includes
Carrying Case, Test Leads
Midscale Resistance
25 ohm
AC Current Accuracy
+/-2.0% + 5 Digits
Data Hold
Yes
Special Features
Measures Voltage and Current Without Batteries, Works Below 32 Degrees F
Operating Temp.
5 Degrees to 122 Degrees F
AC Response
Average
Battery Type
AAA
Standards
EN60101-1:2001, EN61010-2-032 (2002, Pollution Degree : II, Class 2)
Audible Continuity
Yes
Display Type
Rotary Scale
Minimum AC Current Measurement
15 A
AC Response Calculation
Average
Calibration Certificate Included
No
Maximum Resistance Measurement
1,000 ohm
Minimum AC Voltage Measurement
150 V
Maximum AC Current Measurement
1,000 A
Parameters Measured
AC Current, AC Voltage, Continuity, Resistance
Minimum Operating Temperature
5 Degrees F
Jaw Style
Clamp On
Batteries Included
Yes
Battery Access
No
Maximum AC Voltage Measurement
600 V

Description

Analog Clamp Meter, AC Response Calculation Average, Calibration Certificate Included No, Calibration Frequency 50/60 Hz, Jaw Style Clamp On, Maximum AC Current Measurement 1,000 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement Not Applicable, Minimum AC Voltage Measurement 150 V, Minimum AC Current Measurement 15 A, Safety Rating CAT IV 600V, Jaw Opening 1.88 in, Audible Continuity Yes, Batteries Included Yes, Battery Access No, Battery Size AAA, Data Hold Yes
