  9. Clamp-On Power Meter, LCD, 600 kW, 600 A, CAT IV Safety Rating, AAA Batteries Power Source

This item is Discontinued.

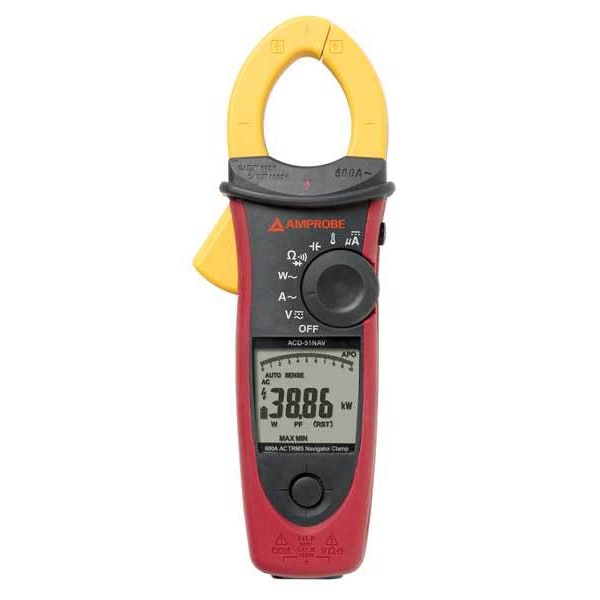

Amprobe Clamp-On Power Meter, LCD, 600 kW, 600 A, CAT IV Safety Rating, AAA Batteries Power Source ACD-51NAV

Clamp-On Power Meter, LCD, 600 kW, 600 A, CAT IV Safety Rating, AAA Batteries Power Source (Discontinued)

  • Mfr # ACD-51NAV
  • Zoro # G3686681
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ACD-51NAV
Zoro #
G3686681
UPC #
095969556644
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
AAA

Details

Item
Clamp-On Power Meter
Max. Watts
600 kW
Max. AC Amps
600
Max. DC Volts
1,000
Temp. Range
-50 Degrees to 1832 Degrees F (-50 Degrees to 1000 Degrees C)
Safety Rating
CAT IV
Power Source
AAA Batteries
Display
LCD
Jaw Opening
1.45 in
Max. AC Volts
1,000
Voltage Accuracy
AC +/-1.0% Rdg +5 Digits, DC +/-0.7% Rdg +2 Digits
Current Accuracy
+/-1.5% Rdg +5 Digits
Calibration Frequency
20 Hz to 10 KHz
Peak Capture
Yes
Operating Temp. Range
32 Degrees to 122 Degrees F (0 Degrees C to 50 Degrees C)
True RMS
Yes
Max. Resistance
100 K Ohms
Special Features
Continuity Beeper Quickly Identifies Shorts and Opens, Inrush Current Measurement and Phase Rotation Indication for 3-Phase Motors, Low Pass Filter Allows Measurement of Voltage and Frequency of Variable Frequency Drives, Non-Contact Voltage Detection Enhances Safety
Power Accuracy
+/-2.5% Rdg +5 Digits
Thermometer Type
K-Type
Power Factor
-1.00 to 1.00
Includes
Banana K-Type Thermocouple, Carrying Case, Test Leads
Counts
10,000
Auto Power Off
Yes
Data Hold
Yes
Non-Contact Voltage Detector
Yes
Audible Continuity
Yes
Auto Ranging
Yes
Peak Hold
Yes
Frequency Counter
20.0Hz to 10KHz
Diode Test
No
Intrinsically Safe
No
Minimum Capacitance Measurement
400 uF
Maximum AC Current Measurement
600 A
Basic AC Current Accuracy
+/-1.50%
Maximum Wattage
600 kW
Minimum Wattage
10 kW
Display Type
Backlit Digital Display
Maximum Storage Temperature
60 Degrees F
Maximum Temperature Measurement
1,832 Degrees F
Frequency Measurement Accuracy
+/-0.50%
Basic AC Voltage Accuracy
+/-1.00%
Minimum DC Voltage Measurement
100 V
Basic DC Current Accuracy
+/-1.50%
Resistance Measurement Accuracy
+/-1.00%
Maximum Resistance Measurement
100 kiloohm
Temperature Measurement Resolution
0.8 Degrees C
Maximum Power
600 kW
Power Measurement Accuracy
+/-2.50%
Minimum Temperature Measurement
-50 Degrees F
Maximum Operating Temperature
1,832 Degrees F
Temperature Measurement Accuracy
+/-1.00%
Maximum Capacitance Measurement
4 mF
Batteries Included
Yes
Minimum Power
10 kW
Basic DC Voltage Accuracy
+/-0.70%
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Voltage, Frequency, Resistance, Temperature (K)
Maximum DC Voltage Measurement
1,000 V
Maximum AC Voltage Measurement
1,000 V
Minimum Resistance Measurement
1 kiloohm
Capacitance Measurement Accuracy
+/-1.90%
Maximum Frequency Measurement
10 kHz
Wattage Measurement Accuracy
+/-2.50%
Minimum AC Voltage Measurement
100 V
Battery Voltage
1,000V; 100V
Minimum Frequency Measurement
20 Hz
Minimum Storage Temperature
14 Degrees F
Minimum Operating Temperature
-50 Degrees F
Minimum AC Current Measurement
100 A

Description

Clamp On Power Meter, Basic AC Current Accuracy +/-1.50 Percent, Basic AC Voltage Accuracy +/-1.00 Percent, Basic DC Current Accuracy +/-1.50 Percent, Basic DC Voltage Accuracy +/-0.70 Percent, Batteries Included Yes, Battery Size AAA, Battery Voltage 1,000V; 100V, Calibration Certificate Included Traceable without Data, Calibration Frequency 20 Hz to 10 KHz, Capacitance Measurement Accuracy +/-1.90 Percent, Counts 10,000, Data Logging No, Display Type Backlit LCD
