Shop AMPROBE

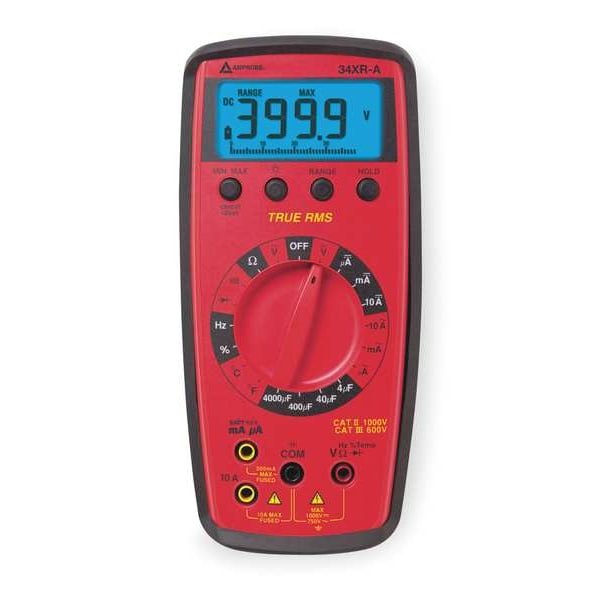

Digital Multimeter, 1,000 V Max DC, 400 V Max AC, TRMS, 3,999 Instrument Counts, LCD

  • Mfr # 34XR-A

  • Zoro # G2853252

product price:  $283.99
/ea
Free Shipping & Returns

Key Features

Display Type
LCD
Data Hold
Yes
Instrument Counts
3,999
Includes
Battery, Holster with Magnetic Hanging Strap, Spare Fuse, Temperature Adapter, Test Leads with Threaded Alligator Clips, Type K Thermocouple
Standards
cCSAus, OSHA, UL
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
34XR-A
Zoro #
G2853252
UPC #
095969365383
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
3 yr
Overall Height
7.71 in
Depth
2.36 in
True RMS Bandwidth
2 kHz
Overall Width
3.62 in
Battery Size
9V

Details

Item
Digital Multimeter
Display Type
LCD
Data Hold
Yes
Instrument Counts
3,999
Includes
Battery, Holster with Magnetic Hanging Strap, Spare Fuse, Temperature Adapter, Test Leads with Threaded Alligator Clips, Type K Thermocouple
Standards
cCSAus, OSHA, UL
Auto Power Off
Yes
Data Logging
No
Audible Continuity
Yes
Diode Test
Yes
Multimeter Style
Full Size - Basic Features
Max. DC Amps
10
Auto Ranging
Yes
Basic DC Accuracy
+/-0.50% of Reading + 1 Digit
Series
AMPROBE (R) 34XR-A
Calibration Certificate Included
No Certification Included
Temp. Range
-4 Degrees to 1832 Degrees F
Display
Backlit LCD
Capacitance Range
4000 uF
Max. Ohms
40 megohm
Instrument Frequency Counter Range
1 Hz to 1 Mhz
Max. AC Amps
10
Instrument Safety Rating
CAT II 1000V, CAT III 600V
AC Response
TRMS
Duty Cycle
Duty Cycle Test Included
Intrinsically Safe
No
Minimum Operating Temperature
32 Degrees F
Bluetooth Compatible
No
Batteries Included
Yes
Temperature Measurement Accuracy
-20 Degrees C to 10 Degrees C: +/- (2.0 % rdg + 4 Degrees C ) 10 Degrees C to 200 Degrees C: +/- (1.0 % rdg + 3 Degrees C ) 200 Degrees C to 1000 Degrees C: +/- (3.0 % rdg + 2 Degrees C ) -4 Degrees F to 50 Degrees F: +/- (2.0 % rdg + 8 Degrees F) 50 Degrees F to 400 Degrees F: +/- (1.0 % rdg + 6 Degrees F) 400 Degrees F to 1832 Degrees F: +/- (3.0 % rdg + 4 Degrees F)
Frequency Measurement Accuracy
+/- (0.1 % rdg + 3 dgts)
AC Current Measurement Resolution
400 uA
Maximum Capacitance Measurement
4,000 uF
Basic AC Current Accuracy
+/- (1.5 % rdg + 8 dgts)
DC Voltage Measurement Resolution
400 V
Removable Screen
No
Minimum/Maximum Memory
Min/Max
Basic AC Voltage Accuracy
+/- (1.2 % rdg + 8 dgts)
DC Current Measurement Resolution
400 uA
Basic DC Current Accuracy
+/- (1.0 % rdg + 1 dgt)
Weight
1 lb
Frequency Measurement Resolution
4 kHz
Dustproof
No
Fuse Access
Yes
Maximum Temperature Measurement
1,832 Degrees F
Minimum Resistance Measurement
400 ohm
Current Leakage Testing
No
Thermal Imaging
No
Minimum Frequency Measurement
4 kHz
Minimum Temperature Measurement
-4 Degrees F
Minimum DC Voltage Measurement
400 V
Waterproof
No
Temperature Measurement Resolution
0 Degrees C
Maximum Resistance Measurement
40 megaohm
Minimum Capacitance Measurement
4 uF
Bar Graph Included
Yes
Battery Voltage
9 V
Resistance Measurement Resolution
400 ohm
Maximum Frequency Measurement
1 MHz
Minimum AC Voltage Measurement
400 V
Resistance Measurement Accuracy
+/-2%
AC Voltage Measurement Resolution
400 V
Maximum AC Voltage Measurement
1,000 V
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
Maximum DC Voltage Measurement
1,000 V
Maximum DC Current Measurement
10 A
Minimum DC Current Measurement
400 uA
Maximum Operating Temperature
122 Degrees F
Basic DC Voltage Accuracy
+/-0.50% + 1 Digit
Battery Access
Yes
Maximum Storage Temperature
140 Degrees F
Minimum Storage Temperature
-4 Degrees F
Maximum AC Current Measurement
10 A
Capacitance Measurement Resolution
4 uF
Battery Chemistry
Alkaline
Capacitance Measurement Accuracy
+/- (5.0 % rdg + 5 dgts)
AC Response Calculation
TRMS
Minimum AC Current Measurement
400 uA
Computer Interface Connection Type
None
Current Units
A, mA
IP Rating
Not Rated
CAT Safety Rating
CAT II 1000V, CAT III 600V
Includes Auto Sensing
No Auto Sensing Included
Special Features
Auto Power Off to Save Battery Life, Autoranging, Display Update Rate: 2/sec, Nominal, Display: 3-3/4 Digit LCD, 3999 Counts with 41-Segment Analog Bar Graph, Magne-Grip(TM) Holster with Magnetic Hanging Strap, Min/Max, Data Hold and Range Lock, Operating Temperature: 0 Degrees C to 45 Degrees C at Less Than70% R.H, Overrange Indication, Separate Door for Easy Battery and Fuse Access, True-RMS Digital Multimeter with Temperature and Backlight

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/- (1.2 Percent rdg + 8 dgts), Basic DC Voltage Accuracy +/-0.50 Percent + 1 Digit, Data Hold Yes, Basic DC Current Accuracy +/- (1.0 Percent rdg + 1 dgt), Instrument Safety Rating CAT II 1000V, CAT III 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 3,999
