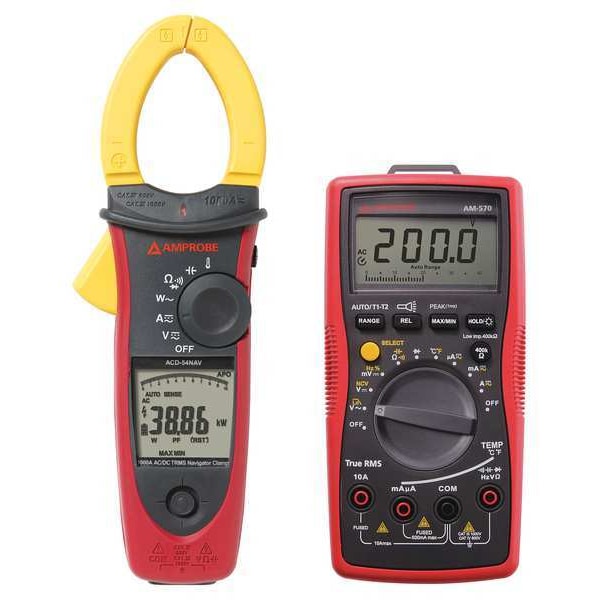

Amprobe Digital Multimeter Clamp On Kit, LCD, 1,000 kW, 1,000 A, CAT III 1000V, CAT IV 600V Safety Rating 6NZJ0 + 1WKP6 - main

Digital Multimeter Clamp On Kit, LCD, 1,000 kW, 1,000 A, CAT III 1000V, CAT IV 600V Safety Rating

  • Mfr # 6NZJ0 + 1WKP6

  • Zoro # G2608818

product price:  $1,020.99
/ea
Free Shipping & Returns

Key Features

Max. Watts
1,000 kW
Max. AC Amps
1,000
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000
Temp. Range
-50 Degrees to 1832 Degrees F (-50 Degrees to 1000 Degrees C)
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
6NZJ0 + 1WKP6
Zoro #
G2608818
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr

Details

Item
Digital Multimeter Clamp On Kit
Max. Watts
1,000 kW
Max. AC Amps
1,000
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000
Temp. Range
-50 Degrees to 1832 Degrees F (-50 Degrees to 1000 Degrees C)
Safety Rating
CAT III 1000V, CAT IV 600V
Power Source
(2) AA Batteries
Display
LCD
Jaw Opening
1.77 in
Max. DC Amps
1,000
Max. AC Volts
1,000
Voltage Accuracy
AC +/-1.0% Rdg +5 Digits, DC +/-0.7% Rdg +2 Digits
Current Accuracy
+/-1.5% Rdg +5 Digits
Calibration Frequency
20 Hz to 10 KHz
Data Logging
No
Operating Temp. Range
32 Degrees to 122 Degrees F (0 Degrees C to 50 Degrees C)
Includes
9V(6F22) Battery, Banana K-Type Thermocouple, Batteries, Carrying Case, Temperature Adapter, Test Leads, (2) Type K Probe, Velcro Strap
Thermometer Type
K-type
True RMS
Yes
Power Accuracy
+/-2.5% Rdg +5 Digits
Power Factor
-1.00 to 1.00
Counts
10,000
Peak Capture
Yes
Special Features
Power, Power Factor, Individual Harmonics, Low Pass Filter for Variable Frequency Drives, Flash Light for Determing Color of the Wires in the Dark
Max. Resistance
100 K Ohms
Digital Multimeter Instrument Counts
6,000
Clamp Meter Max. DC Voltage
1,000 V
Clamp Meter AC Response Calculation
TRMS
Digital Multimeter AC Response Calculation
TRMS
Clamp Meter Max. AC Voltage
1,000 V
Digital Multimeter Manufacturer Part Number
4210340
Digital Multimeter Maximum AC Voltage Measurement
1,000 V
Digital Multimeter Audible Continuity
Yes
Clamp Meter Instrument Counts
1,000
Clamp Meter Max. DC Current
1,000 A
Clamp Meter Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Power Factor, Resistance, Total Harmonic Distortion
Digital Multimeter Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Duty Cycle, Frequency, Resistance
Clamp Meter Max. AC Current
1,000 A
Digital Multimeter Maximum DC Voltage Measurement
1,000 V
Digital Multimeter Maximum DC Current Measurement
10 A
Digital Multimeter Maximum AC Current Measurement
10 A
Clamp Meter Instrument Safety Rating
CAT III 1000V, CAT IV 600V
Clamp Meter Manufacturer Part Number
3729989
Digital Multimeter Display Type
Backlit LCD
Digital Multimeter Instrument Safety Rating
CAT III 1000V, CAT IV 600V
Clamp Meter Data Hold
Yes
Digital Multimeter Data Hold
Yes
Clamp Meter Display Type
Analog Bar Graph; Backlit
Number of Batteries Included
1

Description

Digital Multimeter Clamp On Kit, Test Instrument Included Clamp Meter, Digital Multimeter, Includes 9V Battery, Banana Plug K Type Thermocouple, Battery, Carrying Case, Temperature Adapter, Test Leads, (2) Type K Probes, Velcro Strap, Digital Multimeter Maximum AC Current Measurement 10 A, Digital Multimeter Maximum AC Voltage Measurement 1,000 V, Digital Multimeter Maximum DC Current Measurement 10 A, Digital Multimeter Maximum DC Voltage Measurement 1,000 V, Clamp Meter Data Hold Yes
