  11. 0.7X-5X Zoom 4K 60fps 8MP HDMI Digital Inspection Microscope With Ring Light
Shop All Digital Microscopes
Amscope

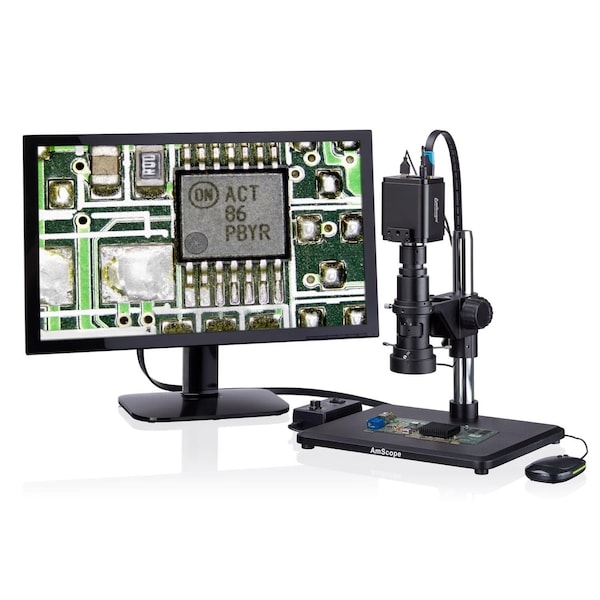

0.7X-5X Zoom 4K 60fps 8MP HDMI Digital Inspection Microscope With Ring Light

product price: $1,539.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Megapixels 2160p
  • Light Source LED
  • Power Supply 110V, Wide Band
  • Length 20
  • Optical Magnification Range 0.7X-5X
See all product information

Product Information

Dimensions

Length 20
Width 20
Height 10

Details

Item Digital Microscope
Megapixels 2160p
Light Source LED
Power Supply 110V, Wide Band
Optical Magnification Range 0.7X-5X
Includes Microscope, Power Cord, Camera, User Manual
Magnification - Objective Lens 0.7X-5.0X
Head Type Digital

Description

This is a highly-versatile inspection system well suited for production lines & laboratories alike. The ultra-sharp 0.7X-5X zoom lens produces highly-corrected, color-accurate images. Using a single objective ensures maximum depth-of-field & even focus, & is recommended over stereo microscopes when producing photos & video are the main goals.


The 4K camera produces stunning, ultra-high definition video & photos. Operating as a Stand-alone system, the camera can stream 4K video at 60fps over HDMI. A built-in software interface provides tools for image-adjustment & measurement -- perfect for QC workflows & laboratory growth analysis. Videos & photos can be recorded to SecureDigital media or USB storage devices.


The functionality doesn't stop there. The camera can be integrated into your computer network over LAN or Wi-fi, with full-featured microscopy software to expand the camera's abilities. Features include image-stitching & focus-stacking, time-lapse capture, segmentation & counting tools, & much more. The camera can be accessed over a network for remote capture during isolated experiments or long-term monitoring.


A 96-LED variable-intensity Ring Light provides bright, low-heat, even illumination. Designed specifically for this lens, the Ring Light evenly distributes light for optimal results.


Features:

  • 0.7X-5.0X zoom objective

  • C-mount lens

  • Long working distance

  • Sharp images over a super wide field view

  • Stable, all-metal pillar-Stand

  • Cool, even 96-LED lighting

  • 4K multi-function camera with built-in recording

    • Microscope Specifications :
  • Zoom microscope objective: 0.7X-5.0X

  • Mount: 0.4X C-mount

  • Working distance: 4-1/8" (105mm)

  • Metal Stand dimension: 13" x 10"

  • Pillar: 11" (280mm) long

    • Packing List :
  • One monocular zoom microscope

  • One focusing rack

  • One pillar plate Stand

  • One dust cover

  • One 96-LED Ring Light

  • One lighting control module

  • One camera body

  • One HDMI camera

  • One USB mouse

  • One USB Wi-fi dongle

  • One 16GB SD card

  • HDMI cable

  • One AC adapter for camera

    • Restrictions
