  11. 18MP USB 3.0 High-speed Color CMOS C-Mount Microscope Camera W/ Reduction Lens and Calibration Slide
This item is Discontinued.
Amscope 18MP USB 3.0 High-speed Color CMOS C-Mount Microscope Camera W/ Reduction Lens and Calibration Slide MU1803-HS

18MP USB 3.0 High-speed Color CMOS C-Mount Microscope Camera W/ Reduction Lens and Calibration Slide (Discontinued)

  • Mfr # MU1803-HS
  • Zoro # G104197368
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
MU1803-HS
Zoro #
G104197368
UPC #
840979120626
Country of Origin
China

Dimensions

Length
5.91
Height
3.94
Width
5.71

Details

Item
camera

Description

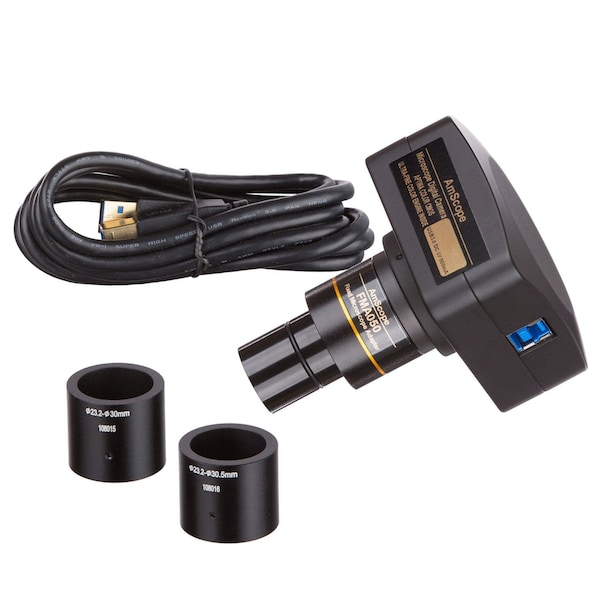

This is a faster version of our MU1803 microscope camera, featuring an 18MP sensor and USB3.0 connectivity. The kit includes a reduction lens, a USB cable, two ocular-port adapters, and a calibration kit. The digital camera captures still images and live video on your computer. The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus) and video recording. Live video and still image capture can be set in different resolutions simultaneously. The 0.5X reduction lens gives larger field of view.


The included software for Windows XP/Vista/7/8/10 allows you to make notes, shapes and watermarks with ease. With the calibration slide, you can take precise measurements and analyze, present, and share images of samples with a single USB connection. Featuring built-in C-mount compatibility and 23mm reduction lens adapter, our camera can be attached to any instrument with a C-mount or a 23mm, a 30mm and a 30.5mm photo port.


Camera Specifications:

  • Sensor: Aptina AR1820 (color)

  • Sensor Type: CMOS

  • Sensor Size: 6.14x4.61mm

  • Pixel Size: 1.25

  • Resolution: 18MP

  • Max Frame Rate: 54.4fps @ 1228x922, 34.3fps @ 2456x1842, 13.1fps @ 4912x3684

  • Sensitivity: 0.62 V/lux-sec

  • Connectivity: USB 3.0

  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

    • Software Specifications:

  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+

  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed

  • Advanced software for Windows:
    - offers Stitching, EDF, video recording and measurement functions
    - conducts measurements for lengths, angles, arcs, areas and etc.
    - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
    - live video and still image capture can be set in different resolutions simultaneously
    More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels,

    • Restrictions

    WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
