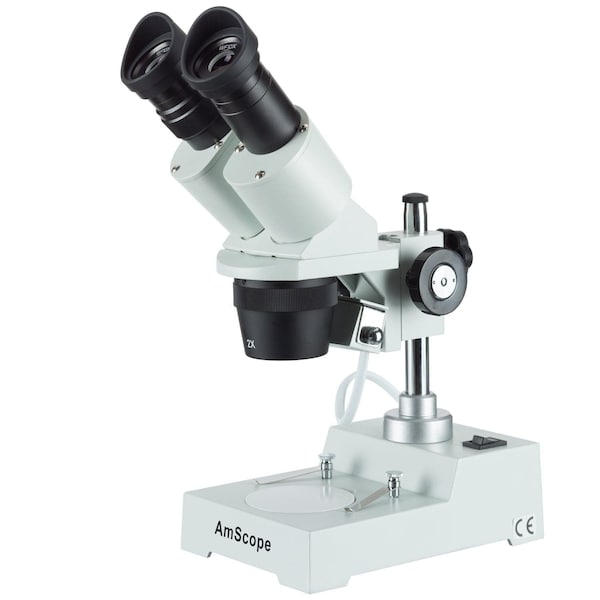

20X-40X Compact Multi-Lens Stereo Microscope With Angled Head, Metal Pillar Stand, Top Lighting

The SE304R-P is an ultra-compact stereo microscope designed primarily for students & hobbyists. The microscope is equipped with two pairs of high-quality objective lenses & can use various eyepieces for multiple levels of magnification. This simplicity & versatility has made it popular among coin collectors & engravers. Younger users will find the instrument easy to use thanks to the modest magnification range & the stereo optics which provide three-dimensional viewing & upright images. The forward-oriented head places the observation stage closer to the user which is typically beneficial for delicate work using soldering or cutting instruments. The microscope uses a pillar for height-adjustment, allowing free vertical & rotational adjustment. A single light-source is mounted above the stage to provide the necessary illumination for observing opaque objects.

Two pairs of objective lenses provide 20X & 40X stereo magnification when used with the included 10X eyepieces. This range is intended for common soldering & mechanical repair, & inspecting larger objects. The objective magnification can be changed by simply rotating the nosecone to switch lenses. The viewing head uses 30.5mm ocular tubes to provide an extra-large field-of-view. One ocular tube has an integrated dioptric adjuster for users with astigmatism, or to fine-tune focus when using a camera in place of the eyepiece. The head can be adjusted for any user using rotating binocular adjustment for proper alignment with the eyes.

Focus can be adjusted by using symmetrical knobs for fine adjustments, or more coarsely by vertically sliding the head along the pillar. The pillar also allows rotation for lateral adjustment, & can accommodate a slightly larger working distance compared to the track-Stand model thanks to this free adjustment. Tension in the focus knobs can be adjusted using an included spanner wrench, ensuring comfortable use.

• 2 levels of stereo magnification from 20X to 40X
• A halogen top-light provides incident illumination for opaque objects.
• The compact design is perfect for students and hobbyists with limited space.
• The pillar stand provides more flexibility to position the microscope head, including adjusting the height.
