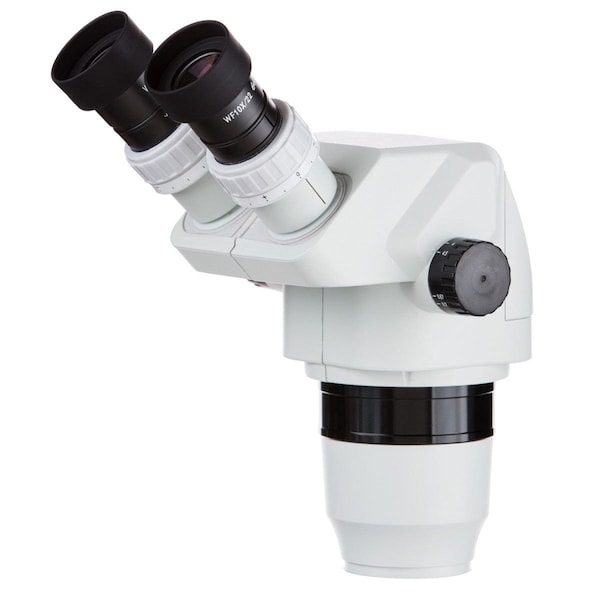

2X-180X Ultimate Binocular Stereo Zoom Microscope Head

This is a 2X-180X zoom magnification binocular stereo microscope head with ultimate optical system, offering top-level sharp clear erect stereo images over a large zoom magnification range. It includes two Barlow lenses (0.3X & 2.0X) and two pairs of extreme widefield high-eyepoint eyepieces with foldable eyeguards (WH10X/22 & WH20/12). It comes with 45-degree inclined 30mm eyetubes with diopter. The extreme widefield optics and high-eyepoint design ensure an easy and comfortable observation. This microscope head fits all the stands with a 3" (76mm in diameter) O-ring holder.

Features:

• 2X-180X Continuous Zoom Magnification Offering Top-Level Quality Images


• 45-degree Inclined Binocular Head with Extreme Widefield High-Eyepoint Eyepieces


• 30mm Extreme Widefield WH10X/22 Eyepieces


• High Resolution with Great Flatness and Contrast


• Sharp Stereo Erect Images over a Wide Field View


• Crystal Clear Original True Color Images


• Both Ocular-Tubes with Adjustable Diopter


• Large Working Distance 14" (350mm)


• Accurate Alignment Ensuring a Fatigue-Free Viewing


• Full Optical Glass Elements


• Precise Ground Glass Lens


• All Metal Mechanical Components


• Adjustable Interpupillary Distance


• Rubber Eyeguards Included


• Manufactured under ISO 9001 Quality Control Standard

Specifications:

• Head: 45-degree inclined 360-degree swiveling binocular


• Eyepiece: 30mm extreme widefield high-eyepoint WH10X/22 and WH20X/12


• Barlow Lens: 0.3X and 2.0X


• Objective: 0.2-9.0X


• Zoom Range: 90:1


• Diopter Adjustment: ±5dp


• Interpupillary Distance: 2-3/4" - 2-15/16"(47-75mm)


• Field of View: 5-3/4" (145mm)


• Working Distance: 14" (350mm)


• Head Mounting Size: 3" (76mm) in diameter


• Accessory Mounting Size: 1-7/8" (48mm female thread) in diameter

Packing List:

• One Binocular Stereo Zoom Head


• One Pair of Extreme Widefield WH10X/22 Eyepieces


• One Pair of Extreme Widefield WH20X/12 Eyepieces


• One 0.3X Extreme Widefield Barlow Lens


• One 2.0X Extreme Widefield Barlow Lens


• One Pair of Foldable Eye-Guards


• User's Manual Download


• Shipping Weight: 10 lbs
