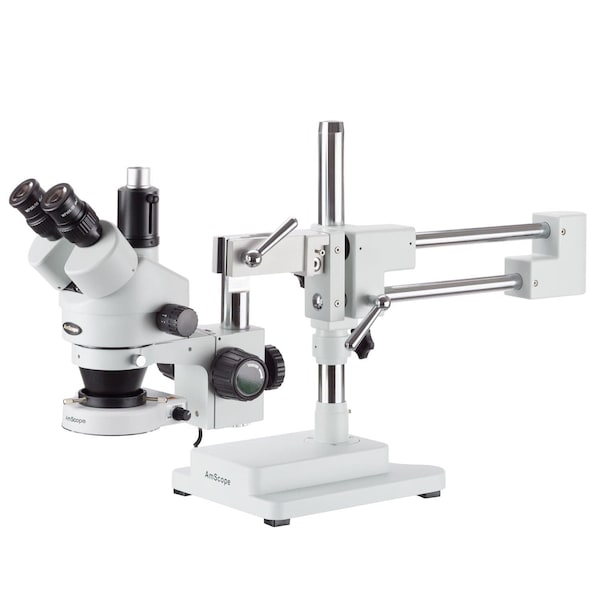

3.5X-45X Trinocular Boom-Arm Stereo Microscope, 80-LED Ring Light

The SM-4T is a heavy-duty, highly-flexible microscope designed for biological & industrial applications. This model is especially popular in the QC, repair & engraving industries thanks to its ease-of-use & reliability. with its wide zoom range & double-arm boom-stand, this model will become an indispensable instrument in any workshop or lab.

Optics

The stereo optics provide clear, sharp images with excellent focus-depth & a large working-distance. with 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X wide-field eyepieces provide an ample magnification range from 7X to 45X, with high-eyepoint optics to accommodate glasses or goggles.

Ocular Adjustment

Dual ocular diopters can be adjusted to maintain consistent focus, greatly improving productivity. Rotating interpupillary adjusters simplify the process of aligning the eyepieces for each user.

Trinocular Port

The switched trinocular photo-port provides a dedicated mount for a camera. When the photo-port is switched open, all light from the left objective is diverted to the port to provide maximum brightness for the camera for the best quality images. This microscope uses our CX series trinocular port, so it can be easily replaced with optional C-mount ports to match specific cameras.

Double-arm boom-stand

The multi-pivoting, double-arm Stand provides a stable, flexible support system, ideal for hands-on work. Use of a drop-down column allows the head to be positioned at virtually any angle. Ball-bearings provide smooth movement of the lateral arms, which can easily pivot the microscope out of the way when it is not needed. The heavy, steel base ensures the stability of the microscope, even when laden with attachments.

Packing List:

One trinocular stereo microscope head

One photo port attachment

10X eyepiece(s)

One pair eye-guards

One double-arm boom-stand with focusing rack

One C-mount USB camera

One 0.5X reduction lens

Two sizing adapters

One USB 3 Type B to type A cable

One software CD

One LED Ring Light

One power controller

One power cable

One Ring Light mounting adapter

• 3.5X-45X extended zoom magnification using high-quality Greenough stereoscopic objective lenses and a 0.5X Barlow lens.
• The microscope provides up to 6.5" (165mm) of working distance.
• A highly-versatile stereo microscope on a heavy-duty, multi-pivot boom-stand which allows the microscope to easily swing into place when needed, and away when not.
• Dual diopters can be adjusted to maintain consistent focus throughout the magnification range, greatly improving productivity.
• The stereo optics provide upright images with clear depth-of-field and a wide view for hands-on applications.
• A trinocular photo-port provides a dedicated mount for adding a camera.
• This microscope is ideal for laboratories, repair shops, and engravers.
