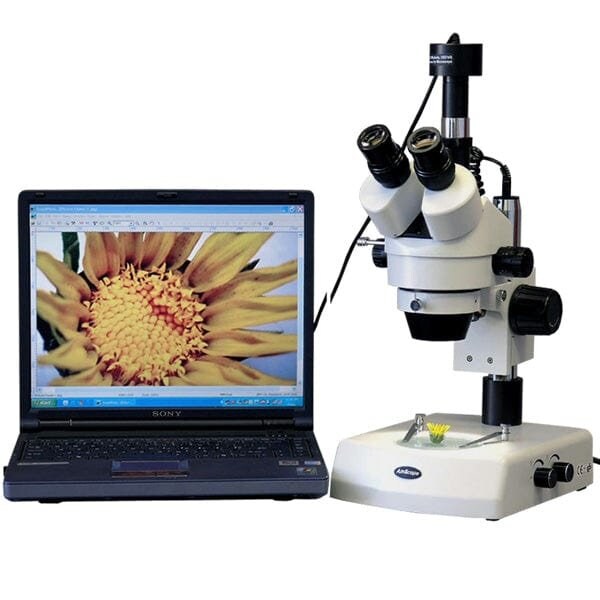

3.5X-90X Stereo Zoom Microscope w Dual Halogen Lights, 3MP Camera (Discontinued)

The SM-2T is a turnkey trinocular stereo microscope solution for biological & industrial fields. Using our workhorse SM745 head, it provides remarkable optical quality With a wide zoom magnification range. The dual-illumination base provides solid support, & both transmitted & reflected lighting for observing a range of objects, from biological cultures to PCBs. This trinocular model has an additional port for mounting a camera, so you can record video or photos With out replacing an eyepiece.

Optics

The stereo optics provide clear, sharp images With excellent focus-depth & a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X wide-field eyepieces provide an ample magnification range from 7X to 45X, With high-eyepoint optics to accommodate glasses or goggles. 0.5X & 2X Barlow lenses are included, which can be alternated to either halve or double the magnification range, expanding the possible magnifications to 3.5X-90X.

Ocular Adjustment

Dual ocular diopters can be adjusted to maintain consistent focus, greatly improving productivity. Rotating interpupillary adjusters simplify the process of aligning the eyepieces for each user.

Trinocular Port

The switched trinocular photo-port provides a dedicated mount for a camera. When the photo-port is switched open, all light from the left objective is diverted to the port to provide maximum brightness for the camera for the best quality images.

Packing List:

One trinocular stereo microscope head

One photo port

One pair 10X eyepieces

One 0.5X Barlow lens

One 2X Barlow lens

One pair eye-guards

One pillar Stand

One focusing block

One top-light

One pair stage clips

One glass stage plate

One black/white stage plate

One power cord

Two light bulbs

One hex wrench

One dust cover

One C-mount USB camera

One 0.5X reduction lens

Two sizing adapters

One USB Type B to USB type A cable

One software CD

• 3.5X-90X extended zoom magnification using high-quality Greenough stereoscopic objective lenses with 0.5X and 2X Barlow lenses.
• Super widefield optical system offering crystal clear images
• Top and bottom lights with separate dimmers provide incident and transmitted illumination for viewing biological specimens and industrial materials alike
• Heavy-duty pillar stand with metal framework combines all of the functionality needed in a compact, stable form
• Trinocular port for adding photo or video capability
• Monitor and capture photos and videos with the included 3MP USB 2.0 camera. Professional microscopy software for Windows, Mac, and Linux provide tools for image processing, measuring, and more.
