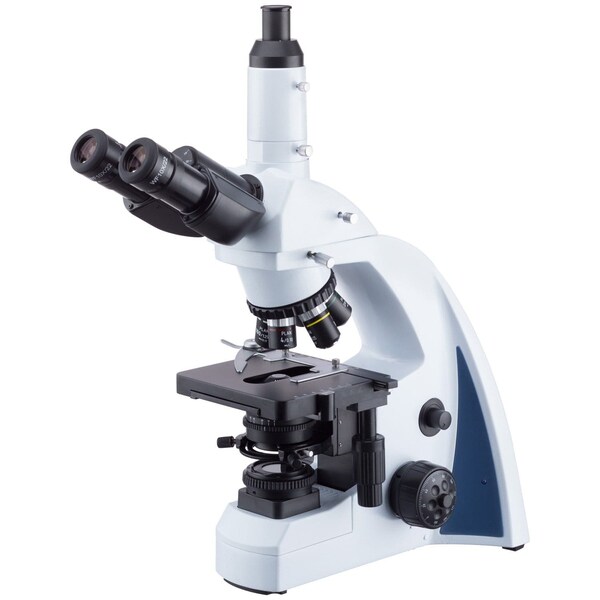

40X-1000X Plan Infinity Compound Microscope With LED Koehler Illumination & Quintuple Nosepiece

The T670Q-PL is designed to be a fully-scalable & economical laboratory microscope. This model is adorned with professional features. Its infinity-corrected optical system ensures reliable, low-distortion magnification, with plan-achromatic corrections for accurate colors, excellent field flatness & edge-to-edge sharpness. A quintuple lens-turret is used, providing five levels of magnification. The Koehler-design LED illumination system provides bright, evenly-distributed light for maximum contrast & definition. A large set of optional upgrades are available for fluorescence, phase-contrast, & darkfield, making this microscope perfect for scaling laboratories & advanced education.

The microscope's head is designed for precision & comfort. Compensation-free Siedentopf interpupillary adjustment allows any user to properly align the oculars with out readjusting focus. For users with astigmatism or asymmetrical vision, both eyepieces can be independently adjusted to fine-tune focus. The switched trinocular port provides a dedicated mount for a camera to record photos or videos, & is height-adjustable to match focus with the eyepieces. The port uses our 23mm YX-type interchangeable interface. Optional C-mount adapters are available with built-in reduction to match specific camera formats.

The quintuple objective turret provides instant access to 5 magnification levels to easily focus in on minute details from 40X to 1000X. This covers magnifications needed for studying hair follicles, cells, soil, & bacteria. The turret's reversed orientation provides more working room above the stage. These high-quality lenses are achromatically corrected to improve resolution & color accuracy, with planatic flat-field correction to provide edge-to-edge sharpness.

The 2-layer mechanical stage provides smooth & precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive & precise for users at any skill level.
