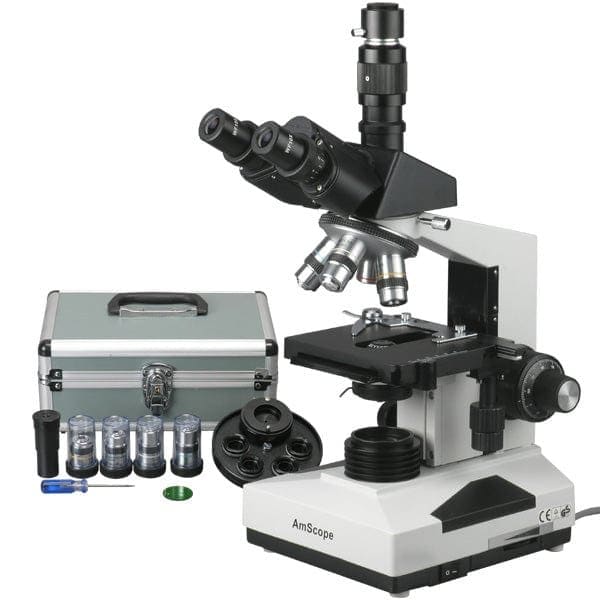

40X-1600X Phase-Contrast Trinocular Biological Compound Microscope With Turret Condenser

The T490-PCS ads phase-contrast to our hardest-working go-to microscope. A top choice for veterinarians, breeders, & clinics, this instrument has proven reliability & optical quality. It boasts features such as a compensation-free Siedentopf head, smooth stage translation, & a precision focus system with easy tension-adjustment & vertical-lock. The Simul-Focal trinocular head provides a dedicated photo port which can be used simultaneously with both eyepieces. Upgraded with a phase-contrast system, new contrast-enhancement techniques are available for studying internal cellular structures & composite materials. A 5-position turret condenser provides easy access to brightfield & multiple phase-contrast settings with the turn of a dial.

A phase-contrast kit is included with a 5-position turret condenser & 4 plan-achromatic phase-contrast objective lenses. Phase contrast is used to reveal detail in indistinct objects, such as unstained cells & microorganisms that would otherwise appear invisible. By using a combination of specialized objective lenses & a modified light condenser, these invisible objects can be visualized by manipulating variations in phase. This turret condenser allows you to easily rotate through the brightfield & four phase-contrast settings (10X, 20X, 40X, 100X). Each phase-contrast setting has a centerable annulus for proper alignment. Each of the phase-ring equipped objective lenses has plan-achromatic corrections for improved color & resolution, as well as edge-to-edge sharpness.

• 40X to 1600X magnification range using high-quality achromatic objective lenses. 10X and 16X eyepieces provide 8 unique magnification settings.
• A top choice for veterinarians, clinics, and classrooms, this microscope provides high quality optics and precision mechanics.
• Professional features include a Siedentopf trinocular head for precise adjustments, a 2-layer mechanical stage with low-position controls, and coaxial coarse and fine focus for ergonomics and an efficient workflow.
• Halogen lighting reduces eye-strain for prolonged use.
• The trinocular photo port allows you to easily mount a camera. The T490 is compatible with our CX series C-mount photo ports with built-in reduction.
• Includes a phase-contrast kit for live-cell studies. The kit includes 4 plan-achromatic phase-ring equipped objective lenses and a 5-position turret condenser.
