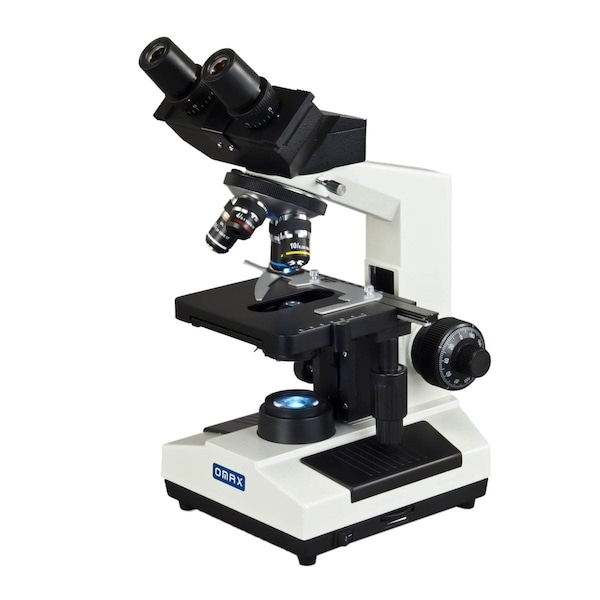

40X-2000X 3MP Digital Integrated Microscope With LED Illumination

The OMAX MD827S30L brings photomicrography to the classroom or clinic. This hybrid design combines all of the fundamental functionality needed in optical microscopy with 3MP integrated digital imaging.

The MD827 series microscope uses a binocular viewing head. To customize the microscope to your viewing comfort, the eyepiece spacing can be easily adjusted using a simple sliding mechanism. Diopters are available on each ocular tube to fine-tune the eyepieces, & the ocular tubes are angled at 45° to accommodate sitting or Standing. Various eyepieces can be used to increase the overall optical magnification with out changing the camera's magnification.

The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. For traditional viewing, additional 20X eyepieces extend the maximum magnification to 2000X, & provides 8 distinct levels of magnification. The high-quality lenses are achromatically corrected to improve resolution & color accuracy.

The 2-layer mechanical stage provides smooth & precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. The LED sub-stage lighting provides cool, energy-efficient illumination. The light-source is daylight balanced to produce natural colors for imaging. Additionally, specialized condensers are available for advanced techniques, such as darkfield & phase-contrast.

• This digital-integrated binocular microscope is ideal for clinics, vets, and classrooms, with optional accessories for advanced applications.
• Stream and capture live images to your computer with this binocular compound microscope with integrated 3MP camera.
• 40X to 2000X magnification with four objective lenses and two sets of eyepieces.
• Daylight-balanced, low-heat LED light-source provides bright transmitted illumination for viewing and imaging specimens.
• Double-layer mechanical stage and coaxial coarse and fine focus for easy, precise adjustments.
