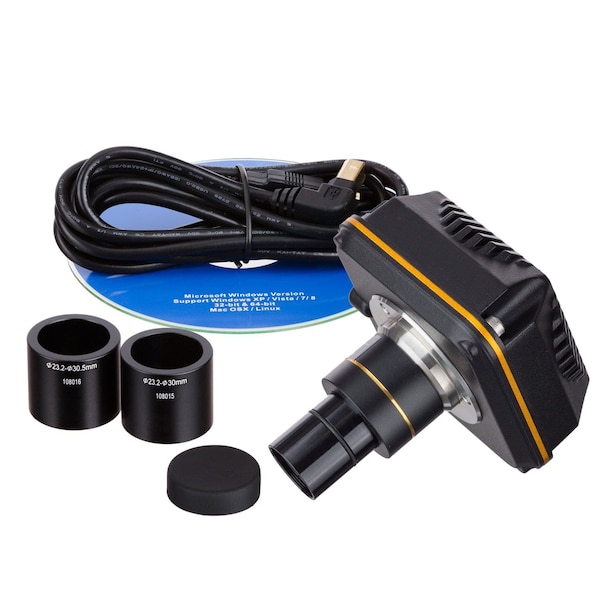

5MP USB 3.0 High-performance Color CMOS C-Mount Microscope Camera with Reduction Lens

The MU503B is part of our high-speed camera line. With improved image-processing and USB 3.0 connectivity, this 5MP camera can achieve framerates of up to 101fps. The compact, all-metal design makes this a go-anywhere imaging solution. Deriving power from the USB connection, MU series cameras can be used at home, in a lab, or in the field. The industry-standard C-mount design allows this camera to be connected directly to C-mount photo-ports, or used in conjunction with an array of lenses and adapters to mount to virtually any popular microscope line.

With software available for Windows, Mac, and Linux, the MU series is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

• Camera Specifications:
• Sensor: Aptina MT9P006 (color)
• Sensor Type: CMOS
• Sensor Size: 5.7 × 4.28mm (1/2.5" class)
• Pixel Size: 2.2μm
• Resolution: 5.0MP
• Frame Rate: 101.2fps @ 640 × 480, 38.3fps @ 1280 × 960, 14.2fps @ 2560 × 1922
• Sensitivity: 1.76V/Lux-sec
• Connectivity: USB 3.0
• Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
• Mounting Sizes: 23mm, 30mm, 30.5mm, and C-mount
• Software Specifications:
• OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
• Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port
• Advanced Windows Software Features: Stitching, EDF, video recording, measurement functions
• Measurement Capabilities: Lengths, angles, arcs, areas, etc.
• Image Formats: BMP, TIFF, JPG, PICT, PTL, others
• Live video and still image capture can be set in different resolutions
