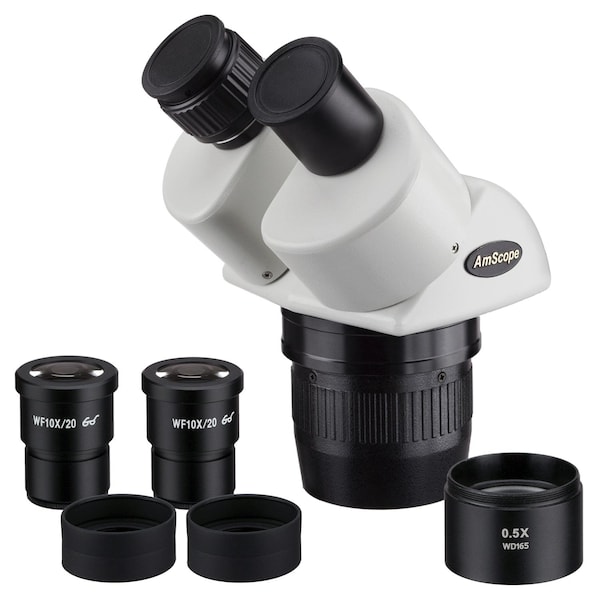

5X-30X Super Widefield Stereo Binocular Microscope Head

This is a super widefield multi-power binocular stereo microscope head with 5X, 10X, 15X and 30X magnification settings. It includes a 0.5X Barlow lens and a pair of super widefield high-eyepoint WH10X/20 eyepieces coming with 45° inclined 30mm eyetubes with diopter. Its super widefield optics and high-eyepoint design ensure an easy and comfortable observation. The microscope offers high resolution clear images, super widefield of view and large working distance 4" (100mm). It fits all the focusing racks with a 3" (76mm in diameter) O-ring holder.

Features:

• 10X and 30X Magnification Settings


• 45° Inclined Binocular Head with 30mm Super Widefield WH10X/20 Eyepieces


• High Resolution with Great Flatness and Contrast


• Sharp Stereo Erect Images over a Wide Field View


• High Quality Clear Original True Color Images


• Ocular-Tube with Adjustable Diopter


• Large Working Distance


• Accurate Alignment Ensuring a Fatigue-Free Viewing


• Full Optical Glass Elements


• Precise Ground Glass Lens


• All Metal Mechanical Components


• Adjustable Interpupillary Distance


• Foldable Rubber Eyeguards Included


• Manufactured under ISO 9001 Quality Control Standard

Specifications:

• Head: 45° inclined 360° swiveling binocular


• Eyepiece: WH10X/20 super widefield 30mm high-eyepoint


• Barlow Lens: 0.5X


• Objective: 1X and 3X


• Diopter Adjustment: ±5dp


• Interpupillary Distance: 1-7/8" - 2-15/16"(47-75mm)


• Field of View: 1.575" (40mm) @ 5X


• Working Distance: 4" (100mm)


• Head Mounting Size: 3" (76mm) in diameter


• Accessory Mounting Size: 1-7/8" (48mm female thread) in diameter

Packing List:

• One 10X and 30X Binocular Stereo Zoom Head


• One Pair of Super Widefield WH10X/20 Eyepieces


• One 0.5X Super Widefield Barlow Lens


• One Pair of Foldable Rubber Eye-Guards


• User's Manual Download


• Shipping Weight: 10-lbs

• 5X, 10X, 15X and 30X four super widefield magnification settings
• Offering high quality super widefield stereo erect images
• Super widefield high-eyepoint WH10X/22 eyepieces with foldable eye-guards
• 48mm (in diameter) female thread for adding Barlow lenses or lights
• Mounting Size: 3" (76mm) in diameter
