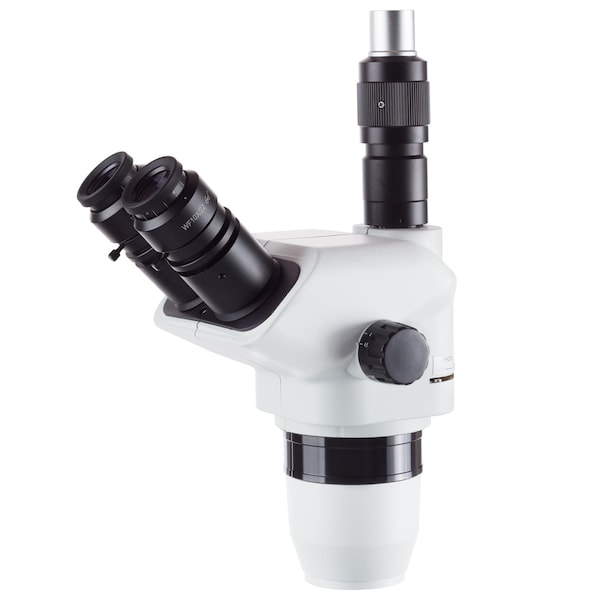

6.7X-45X Trinocular Stereo Zoom Microscope Head with Focusable Eyepieces

This 6.7X-45X zoom magnification trinocular stereo microscope head offers top-level sharp clear erect stereo images over a large zoom magnification range. It includes a pair of extreme widefield focusable WH10X/22 eyepieces. Its outstanding optical system ensures an easy and comfortable observation. The trinocular port enables to add photo or video capability. This microscope head fits all the stands with a 3" (76mm in diameter) O-ring holder.

Features:

• 6.7X-45X Continuous Zoom Magnification Offering Top-Level Quality Images


• High Quality Extreme Widefield Focusable WH10X/22 Eyepieces


• Trinocular port enables to add photo or video capability


• High Resolution with Great Flatness and Contrast


• Sharp Stereo Erect Images over a Wide Field View


• Crystal Clear Original True Color Images


• Both Ocular-Tubes with Adjustable Diopter


• Large Working Distance 4" (100mm)


• Accurate Alignment Ensuring a Fatigue-Free Viewing


• Full Optical Glass Elements


• Precise Ground Glass Lens


• All Metal Mechanical Components


• Adjustable Interpupillary Distance


• Rubber Eyeguards Included


• Manufactured under ISO 9001 Quality Control Standard

Specifications:

• Head: 45-degree inclined 360-degree swiveling trinocular


• Eyepiece: 30mm extreme widefield high-eyepoint focusable WH10X/22


• Objective: 0.67-4.5X


• Zoom Range: 6.7:1


• Diopter Adjustment: ±5dp


• Interpupillary Distance: 2-3/4" - 2-15/16"(47-75mm)


• Field of View: 1-3/8" (35mm)


• Working Distance: 4" (100mm)


• Head Mounting Size: 3" (76mm) in diameter


• Accessory Mounting Size: 1-7/8" (48mm female thread) in diameter

Packing List:

• One Trinocular Stereo Zoom Head


• One Pair of Extreme Widefield WH10X/22 Eyepieces


• One Pair of Foldable Eye-Guards


• User's Manual Download


• Shipping Weight:10 lbs

• 6.7X-45X continuous zoom magnification over extreme widefield view
• Sharp clear stereo erect images over an extreme wide field view
• Focusable extreme widefield high-eyepoint WH10X/22 eyepieces
• Trinocular port for adding photo or video capability
• 48mm (in diameter) female thread for adding Barlow lenses or lights
• Mounting Size: 3" (76mm) in diameter
