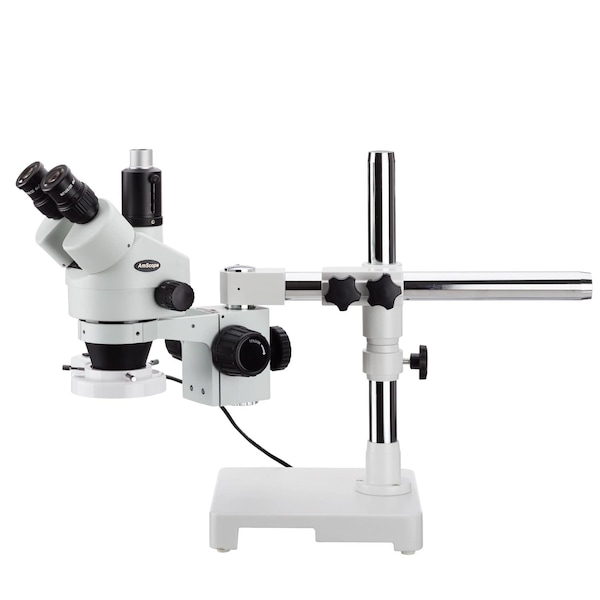

7X-45X Simul-Focal Trinocular Single-Arm Boom Stereo Microscope, Fluorescent Ring Light

The SM-3TP is a heavy-duty, highly-flexible microscope designed for biological & industrial applications. This model is especially popular in the QC, repair & engraving industries thanks to its ease-of-use & reliability. with its wide zoom range & Single-Arm boom-stand, this model will become an indispensable instrument in any workshop or lab. This trinocular model has an additional port for mounting a camera, which is Simul-Focal so it can be used simultaneously with both eyepieces.

Optics

The stereo optics provide clear, sharp images with excellent focus-depth & a large working-distance. with 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X wide-field eyepieces provide an ample magnification range from 7X to 45X, with high-eyepoint optics to accommodate glasses or goggles.

Ocular Adjustment

Dual ocular diopters can be adjusted to maintain consistent focus, greatly improving productivity. Rotating interpupillary adjusters simplify the process of aligning the eyepieces for each user.

Simul-Focal Trinocular Port

The Simul-Focal optics in this microscope allow the trinocular port to be used simultaneously with both eyepieces. This means a camera can stream live images from the microscope while you continue to work with full stereoscopic vision. This is accomplished by sharing the left objective lens with the left ocular & the photo-port. This microscope uses our CX series trinocular port, so it can be easily replaced with optional C-mount ports to match specific cameras.

Packing List:

One trinocular stereo microscope head

One photo port attachment

10X eyepiece(s)

One pair eye-guards

One Single-Arm boom-stand with focusing rack

One C-mount USB camera

One 0.5X reduction lens

Two sizing adapters

One USB 3 Type B to type A cable

One software CD

One fluorescent Ring Light

One Ring Light mounting adapter

• 7X-45X zoom magnification using high-quality Greenough stereoscopic objective lenses.
• A highly-versatile stereo microscope on a robust single-arm boom-stand which allows the microscope to be positioned at virtually any angle.
• Dual diopters can be adjusted to maintain consistent focus throughout the magnification range, greatly improving productivity.
• The stereo optics provide upright images with clear depth-of-field and a wide view for hands-on applications.
• The simul-focal trinocular photo-port provides a dedicated mount for a camera, and can be used simultaneously with both eyepieces.
• This microscope is ideal for laboratories, repair shops, and engravers.
• The lightweight 8W fluorescent ring-light produces a smooth, encompassing field of light for use with any application.
