Plan Objective Lens Set 4X 10X 40X 100X

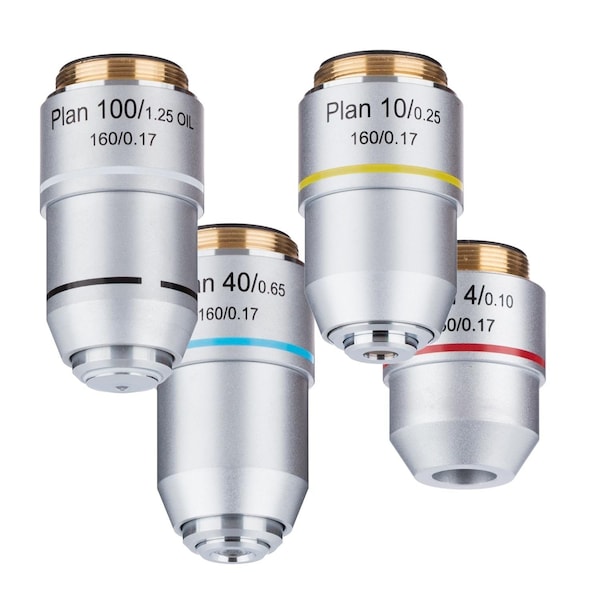

This is a set of Plan Achromatic objective lenses, fitting common-size (DIN standard) compound / biological microscopes. It comes with 4X, 10X, 40X & 100X Plan Achromatic objective lenses, each in a protective container.

Features & Specifications:

• 4X, 10X, 40X, 100X Plan achromat objective lenses


• Plan flat-field corrections for a flat, well-focused field of view


• Achrmotaic color corrections


• 160mm tube-length


• DIN/JIS standard fittings

• PA4X 4X Lens


• NA: 0.10


• Tube Length: 160mm


• Cover Glass Thickness: 0.17mm

• PA10X 10X Lens


• NA: 0.25


• Tube Length: 160mm


• Cover Glass Thickness: 0.17mm

• PA40X 40X (Spring) Lens


• NA: 0.65


• Tube Length: 160mm


• Cover Glass Thickness: 0.17mm

• PA100X 100X (Spring) Lens


• NA: 1.25


• Tube Length: 160mm


• Cover Glass Thickness: 0.17mm


• Immersion Medium: Oil

• This Plan Achromatic objective set comes with 4X, 10X, 40X &100X DIN lenses in protective containers
• Plan Achromatic Objective 4X (4/0.1, 160/0.17)
• Plan Achromatic Objective 10X (10/0.25, 160/0.17)
• Plan Achromatic Objective 40X (40/0.65 (Spring), 160/0.17)
• Plan Achromatic Objective 100X (100/1.25 (Spring, Oil), 160/0.17)
