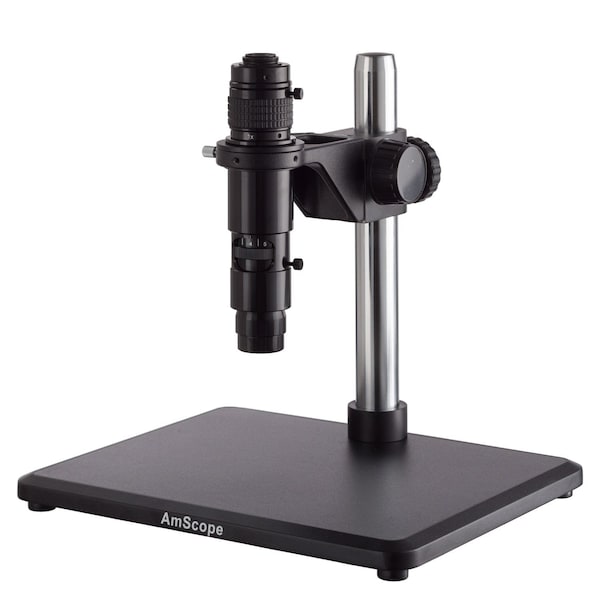

Wide-zoom Inspection Monocular Stereo Microscope 0.83X-10X Magnification on Pillar Stand
Mfr # H1000
Zoro # G716356429
Specifications
Product Information
Description
H1000 Series Wide-zoom Inspection Monocular Stereo Microscope 0.83X-10X Magnification on Pillar Stand. The H1000 is a wide-range monoscopic zoom microscope, commonly used for industrial inspection. The 0.83X to 10X zoom objective provides a large range of magnifications, with a 1X C-mount interface for C-mount cameras. The interface includes a diopter for fine-focus adjustment, useful for making the objective's zoom range parfocal with the imaging device. The C-mount has a removable aperture to accommodate image sensors up to the 1" format. Both the zoom and diopter are lockable for measurement applications. With the use of an optional AD-C23 adapter, an eyepiece can be used. The included stand has an 11" round pillar and a large-footprint base. The focusing rack is compatible with 1.25" diameter pillars, allowing the microscope to be used on other stands, including our single-arm and double-arm boom-stands. Specifications: Lens Type: Zoom C-mount Lens Magnification Range: 0.83X to 10X Numerical Aperture: 0.02 to 0.1 Lens Mount: C-mount 1" / 25.4mm, 4mm height Working Distance: 3-1/2" 90mm Pillar Height: 11" 280mm Pillar Diameter: 1.25" 32mm Stand Footprint: 12-5/8" x 10-1/4"
- 0.83X-10X zoom magnification power offering sharp images
- Metal framework with solid base plate
- Long working distance
- C-mount interface for imaging systems
