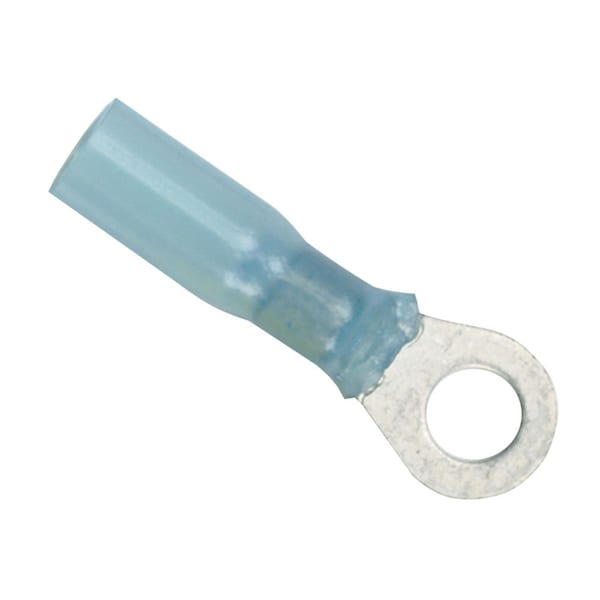

16-14 Gauge - 1/4" Heat Shrink Ring Terminal - 25-Pack
Mfr # 311425
Zoro # G502942584
product price: $19.69
/eaKey Features
Minimum Operating Temperature
40 Degrees C
Insulation Type
Cross-Linked Polyolefin
Stud Size
1/4 in
Maximum Wire Size
14 AWG
Insulation Coverage
Partial Coverage
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
311425
Zoro #
G502942584
UPC #
091887316292
Country of Origin
United States
Dimensions
Stud Size
1/4 in
Maximum Wire Size
14 AWG
Minimum Wire Size
16 AWG
Details
Item
Ring Terminal
Minimum Operating Temperature
40 Degrees C
Insulation Type
Cross-Linked Polyolefin
Insulation Coverage
Partial Coverage
Contact Material
Copper
Terminal Shape
Standard Ring Tongue
Standards
UL 486A and CSA Listed
Maximum Operating Temperature
110 Degrees C
Insulation Color
Blue
Description
Gauge Size: 16-14
Screw Size: 1/4"
Quantity: 25
Product Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC
- Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief
- Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage
- UL Listed and CSA Recognized
- Highest shrink ratio - shrinks to 1/3 original size
- Shrinks at 257° F/125° C
- Operating temperature range 40° C to 110° C
- ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
- Shrinks to form a water tight seal and the ultimate vibration and strain relief
- Tinned for corrosion resistance
- Pure copper for maximum current flow
- Brazed seam for maximum strength
