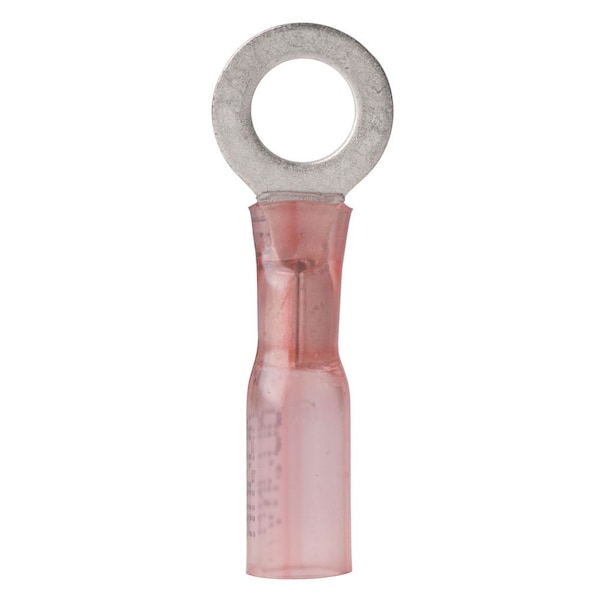

22-18 Gauge - No 8 Heat Shrink Ring Terminal - 3-Pack

  • Mfr # 310203
  • Zoro # G502942966
product price:
$
3.69
/ea
Sold in multiples of 3 for $11.07

Key Features

Standards
UL 486A and CSA Listed
Maximum Operating Temperature
110 Degrees C
Minimum Operating Temperature
40 Degrees C
Contact Material
Copper
Stud Size
#8
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
310203
Zoro #
G502942966
UPC #
91887316261
Country of Origin
United States

Dimensions

Stud Size
#8
Minimum Wire Size
22 AWG
Maximum Wire Size
18 AWG

Details

Item
Ring Terminal
Standards
UL 486A and CSA Listed
Maximum Operating Temperature
110 Degrees C
Minimum Operating Temperature
40 Degrees C
Contact Material
Copper
Terminal Shape
Standard Ring Tongue
Insulation Type
Cross-Linked Polyolefin
Insulation Coverage
Partial Coverage
Insulation Color
Red

Description


Gauge Size: 22-18
Screw Size: #8
Quantity: 3
Product Features:
  • Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
  • Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
  • Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
  • UL Listed and CSA Recognized
  • Highest shrink ratio - shrinks to 1/3 original size.
  • Shrinks at 257 deg. F/125 deg. C.
  • Operating temperature range 40 deg. C to 110 deg. C.
  • ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
  • Shrinks to form a water tight seal and the ultimate vibration and strain relief.
  • Tinned for corrosion resistance.
  • Pure copper for maximum current flow.
  • Brazed seam for maximum strength.
  • Wire Range: 22-18
  • mm: 0.3-0.8
