  11. Female Elbow, Compression, Brass, 1/4InPipe
Shop All Brake Parts
Anderson Metals

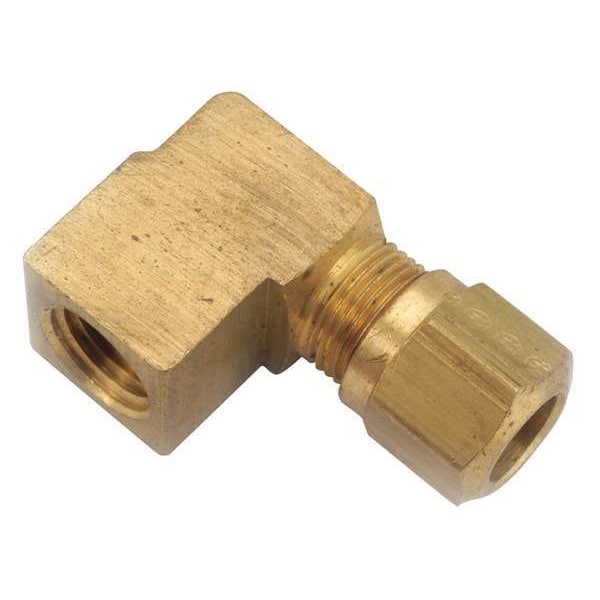

Female Elbow, Compression, Brass, 1/4InPipe

product price: $9.89
/ea
Delivery to commercial address only
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 1/4 in
  • Connection Compression x Pipe
  • Thread Size 7/16-24
  • Pressure (PSI) 150
  • Temp. Range -65 Degrees to 250 Degrees F
See all product information

Product Information

Dimensions

Pipe Size 1/4 in
Thread Size 7/16-24
Tube Size 3/8 in
Fitting Side A Tube Outer Diameter 3/8 in
Thread Size B 7/16-24
Fitting Side B Pipe Size 1/4 in
Thread Size A 17/32-24

Details

Item Female Elbow
Connection Compression x Pipe
Pressure (PSI) 150
Temp. Range -65 Degrees to 250 Degrees F
Material Brass
Standards DOT FMVSS 571.106, SAE
For Use With Nylon Tube Airbrake
Type Compression
Sub-Category Elbows
Application Air
Specific Fitting Shape 90 Degrees Elbow Adapter
Maximum Operating Temperature 200 Degrees F
System of Measurement Imperial
Compatible Tube Material Nylon
Fitting Side A Connection Type Compression
Maximum Operating Pressure 150 psi
Resistance Properties Vibration-Resistant
Minimum Operating Temperature 40 Degrees F
Fitting Side B Connection Type FNPT
Fitting Material Brass

Description

Female Elbow, Application Air, Fitting Side A Connection Type Compression, Fitting Side B Connection Type FNPT, Fitting Material Brass, Fitting Side A Tube Outer Diameter 3/8 in, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 200 Degrees F, Specific Fitting Shape 90 Degrees Elbow Adapter, Fitting Side B Pipe Size 1/4 in, Thread Size A 17/32-24, Thread Size B 7/16-24, System of Measurement Imperial, Standards DOT FMVSS 571.106, SAE, Compatible Tube Material Nylon
