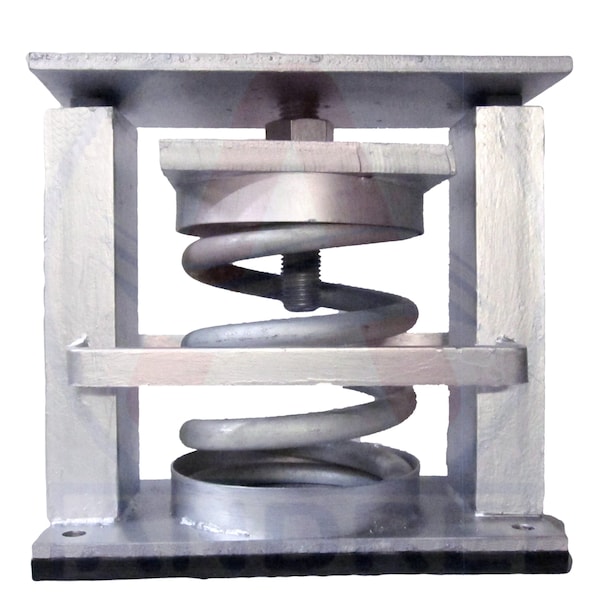

RESTRAINED SPRING ISOLATOR 3, 4500-6750
Mfr # SSR-C-307
Zoro # G908458498
product price: $1,420.99
/ea
Free Shipping & Returns
Key Features
Height
12.8"
Width
7.5"
Spring Color
Silver
Includes
Snubbing Element, Steel Housing, Steel Springs, Steel Nut and Bolt
Length
14"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SSR-C-307
Zoro #
G908458498
UPC #
-
Country of Origin
Canada
Dimensions
Height
12.8"
Width
7.5"
Length
14"
Details
Item
Restrained Seismic Spring Mount
Spring Color
Silver
Includes
Snubbing Element, Steel Housing, Steel Springs, Steel Nut and Bolt
Application
These spring hangers are normally used in critical areas where noise and vibration need to be controlled
Color
Silver
Finish
Housing: Galvanized Steel; Spring: Hot Dip Galvanized Steel
Rated Load
6030LBS
For Use With
Used for Air Conditioning Equipmnet such as compressors, air handling units, centrifugal fans, pump, cooling towers and chillers
Material
Zinc Plated / Galvanized High Strengh Low Carbon Steel; Spring Steel; Elastomeric Compound; Zinc Plated Steel Hardware
Max Load
9000lbs
Spring Identifier Color
Red
Capacity
5940lbs
Rated Deflection
3"
Features
Design allows angular hanger misalignment. Springs have 50% additional travel to max load as per ASHRAE recommendations. The assembly incorporates dual (Steel and Elastomer) washers for uniform load distribution and high frequency isolation
Description
RESTRAINED SPRING ISOLATOR 3
