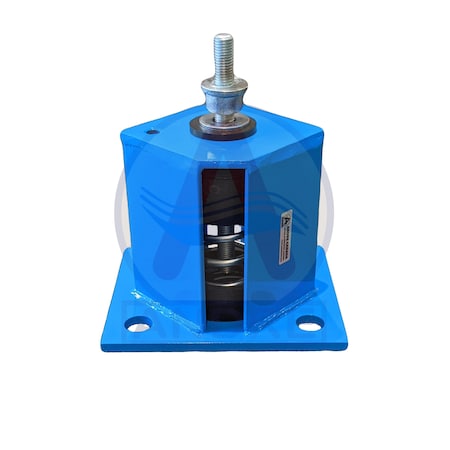

SEISMIC SPRING ISOLATOR 2, 425-635LB
Mfr # SS-B-257-201
Zoro # G608458729
product price: $258.99
/ea
Free Shipping & Returns
Key Features
Height
7.375"
Width
6.125"
Spring Color
Silver
Includes
Steel Housing, Steel Spring, M12 Stud, M12 Nut, Neoprene Snubbing Element
Max Load
845lbs
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SS-B-257-201
Zoro #
G608458729
UPC #
-
Country of Origin
Canada
Dimensions
Height
7.375"
Width
6.125"
Length
7.5"
Details
Item
Seismic Spring Mount
Spring Color
Silver
Includes
Steel Housing, Steel Spring, M12 Stud, M12 Nut, Neoprene Snubbing Element
Max Load
845lbs
Rated Load
566LBS
Capacity
560lbs
Finish
Housing: Blue Powder Coat; Spring: Hot Dip Galvanized Steel
Color
Blue (Powder Coated)
Rated Deflection
2"
Material
High Strengh Low Carbon Steel; Spring Steel; Elastomeric Compound; Zinc Plated Steel Hardware; Powder Coating
Spring Identifier Color
Orange/Black
For Use With
Compressors, Air Handling Units, Centrifugal Fan, Pumps, Chillers
Application
These spring hangers are normally used in critical areas where noise and vibration need to be controlled
Features
Design allows angular hanger misalignment. Springs have 50% additional travel to max load as per ASHRAE recommendations. The assembly incorporates dual (Steel and Elastomer) washers for uniform load distribution and high frequency isolation
Description
SEISMIC SPRING ISOLATOR 2
