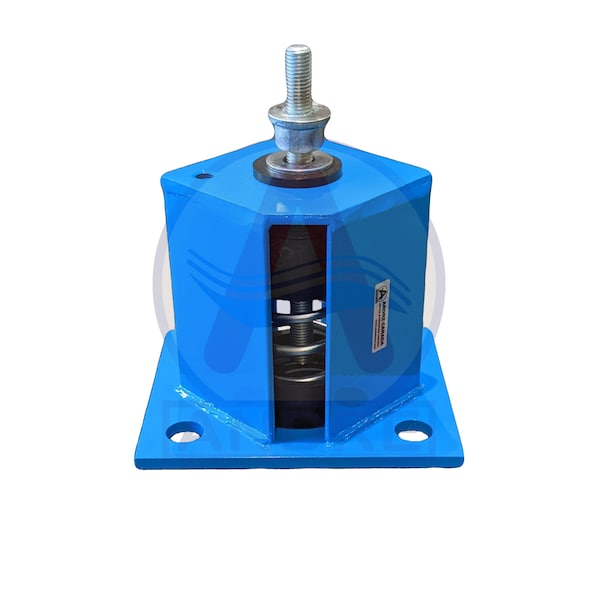

SEISMIC SPRING ISOLATOR 2, 70-105LB
Mfr # SS-B-252
Zoro # G808458444
product price: $268.99
/ea
Free Shipping & Returns
Key Features
Height
7.375"
Width
6.125"
Spring Color
Silver
Includes
Steel Housing, Steel Spring, M12 Stud, M12 Nut, Neoprene Snubbing Element
Rated Deflection
2"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SS-B-252
Zoro #
G808458444
UPC #
-
Country of Origin
Canada
Dimensions
Height
7.375"
Width
6.125"
Length
7.5"
Details
Item
Seismic Spring Mount
Spring Color
Silver
Includes
Steel Housing, Steel Spring, M12 Stud, M12 Nut, Neoprene Snubbing Element
Rated Deflection
2"
Features
Design allows angular hanger misalignment. Springs have 50% additional travel to max load as per ASHRAE recommendations. The assembly incorporates dual (Steel and Elastomer) washers for uniform load distribution and high frequency isolation
Material
High Strengh Low Carbon Steel; Spring Steel; Elastomeric Compound; Zinc Plated Steel Hardware; Powder Coating
Max Load
140lbs
Capacity
95lbs
For Use With
Compressors, Air Handling Units, Centrifugal Fan, Pumps, Chillers
Rated Load
94LBS
Color
Blue (Powder Coated)
Spring Identifier Color
Yellow
Application
These spring hangers are normally used in critical areas where noise and vibration need to be controlled
Finish
Housing: Blue Powder Coat; Spring: Hot Dip Galvanized Steel
Description
SEISMIC SPRING ISOLATOR 2
