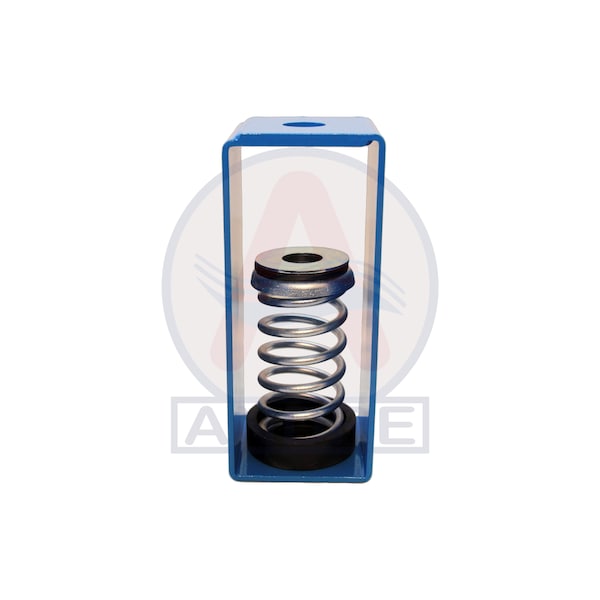

SPRING HANGERS 1 LOAD RANGE 450-675LBS
Mfr # SHC-119
Zoro # G308458487
product price: $69.29
/eaSold in multiples of 4 for $277.16
Key Features
Height
7.5"
Width
3"
Spring Color
silver
Capacity
594lbs
For Use With
Fan Coil Units, Air Handling Units, Fans, Pipes, Ducts
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SHC-119
Zoro #
G308458487
UPC #
-
Country of Origin
Canada
Dimensions
Height
7.5"
Width
3"
Length
3"
Details
Item
Spring Hanger
Spring Color
silver
Capacity
594lbs
For Use With
Fan Coil Units, Air Handling Units, Fans, Pipes, Ducts
Max Load
900lbs
Rated Deflection
1"
Material
Spring Steel; High Strength Low Carbon Alloy Steel; Elastomeric Compounds; Powder Coating
Finish
Spring: Galvanized; Bracket: Powder Coated
Features
Design allows angular hanger misalignment. Springs have 50% additional travel to max load as per ASHRAE recommendations. The assembly incorporates dual (Steel and Elastomer) washers for uniform load distribution and high frequency isolation
Color
Blue (Powder Coated)
Includes
Steel Spring, Steel Bracket, Neoprene Cup, Steel and Elastomer Washers
Spring Identifier Color
Green
Application
These spring hangers are normally used in critical areas where noise and vibration need to be controlled
Rated Load
594LBS
Description
SPRING HANGERS
