Shop APC

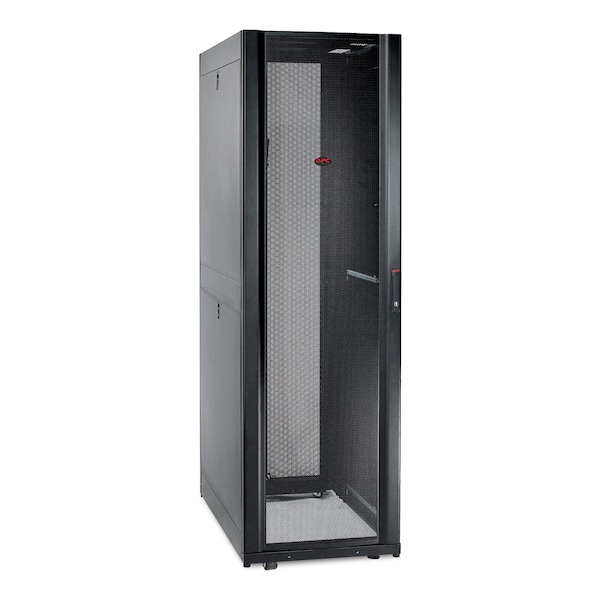

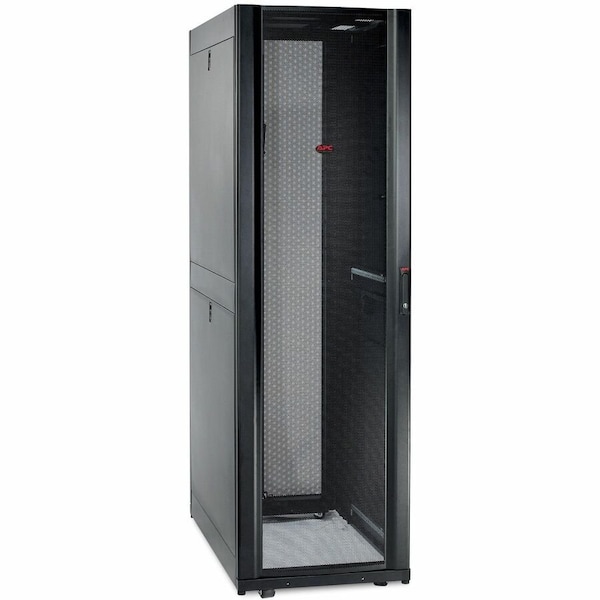

Deep Enclosure, 23.62 in W, 42.13 in D

  • Mfr # AR3105

  • Zoro # G5233663

product price:
$
2,235.99
/ea
Additional $305.00 delivery surcharge applies per item.
See details

Key Features

Mounting Style
Free-Standing
Load Rating
3000 lbs.
Rack Units
45
Height
83.62 in
Width
23.62 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AR3105
Zoro #
G5233663
UPC #
731304290193
Country of Origin
Korea, Republic of

Dimensions

Height
83.62 in
Width
23.62 in
Depth
42.13 in
Overall Height
83 5/8 in
Overall Width
23 5/8 in
Rack Width
19"
Rack Height
45U
Overall Depth
42 1/8 in
Manufacturers Warranty Length
5 yr

Details

Item
Data/Communication Cabinet
Mounting Style
Free-Standing
Load Rating
3000 lbs.
Rack Units
45
Finish
Black
Material
Steel
Includes
Doors, Keys, Leveling Feet, Casters, Side Panels
Product Type
Rack Enclosure
Standards
EIA, EIA-310E, EU, RoHS Compliant, UL 2416, UL 60950-1
Color
Black
Marking
14 gauge EIA mounting rail || 16 gauge front door || 16 gauge post || 18 gauge rear door || 18 gauge roof || 18 gauge side panels
Number Of Rack Unit
45U
Mounting Mode
not rack-mountable
Permanent Permissible Load
2250 lb(US) dynamic || 3750 lb(US) static
Provided Equipment
Baying hardware || Key(s) || Keyed-alike doors and side panels || Leveling feet || Mounting Hardware || Pre-installed casters || Side Panels
Product Or Component Type
rack enclosure
Additional Information
Regulatory Approvals: UL 60950-1, Standards: EIA-310-E
Rail Material Gauge
14
Product Line
NetShelter SX
Certifications & Standards
Free of Substances of Very High Concern above the threshold
Product Name
NetShelter SX Enclosure Rack Cabinet
Static/Stationary Weight Capacity
3000 lb
Package Contents
NetShelter SX Enclosure Rack Cabinet, Baying Hardware, Key(s), Keyed-Like Doors, Side Panels, Leveling Feet, Mounting Hardware, Pre-installed Casters, Side Panels, User Manual
Roof/Top Material Gauge
18
Dynamic/Rolling Weight Capacity
2250 lb
Door Material Gauge
18
Product Color
Black
Side Panel Material Gauge
18
Includes Mounting Hardware
Yes
Overall Load Capacity
3,750 lb

Description

Data/Communication Cabinet, Product Type Rack Enclosure, Color Black, Finish Black, Material Steel, Mounting Location Rack, Overall Height 83 5/8 in, Overall Width 23 5/8 in, Overall Depth 42 1/8 in, Overall Load Capacity 3,750 lb, Rack Units 45, Includes Doors, Keys, Leveling Feet, Casters, Side Panels, Includes Mounting Hardware Yes, Manufacturers Warranty Length 5 yr, Standards EIA, EIA-310E, EU, RoHS Compliant, UL 2416, UL 60950-1
