  11. Line Interactive UPS, 70VA, Line Interactive, Out: 120V AC In: 120V AC

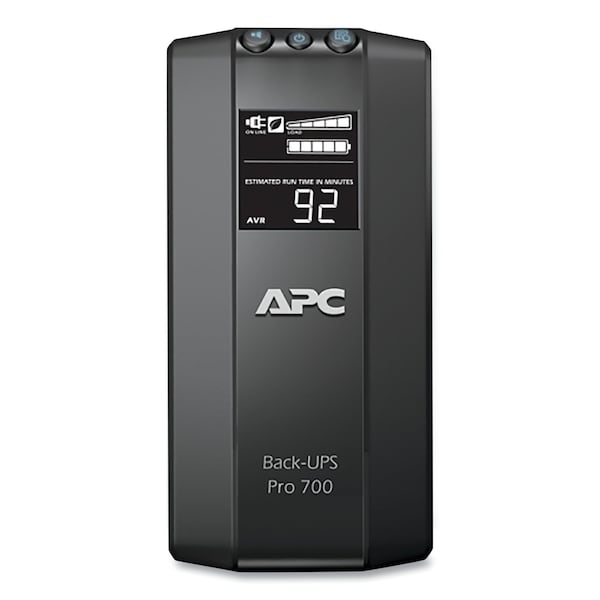

Apc Line Interactive UPS, 70VA, Line Interactive, Out: 120V AC In: 120V AC BR700G - main

Line Interactive UPS, 70VA, Line Interactive, Out: 120V AC In: 120V AC

  • Mfr # BR700G

  • Zoro # G906437815

product price: $217.19
/ea
Free Shipping & Returns

Key Features

VA Rating - UPS Systems
700 VA
UPS Type
Line Interactive
Power Rating
70VA
Mounting
Tower
Wattage
420 W
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR700G
Zoro #
G906437815
UPC #
731304266792
Country of Origin
Philippines

Dimensions

Cord Length
6 ft
Height
7 1/2 in
Depth
12 1/4 in
Width
12 1/4 in

Details

Item
Line Interactive UPS
VA Rating - UPS Systems
700 VA
UPS Type
Line Interactive
Power Rating
70VA
Mounting
Tower
Wattage
420 W
Input Voltage
120V AC
Output Voltage
120V AC
Backup Time (Half/Full Load)
12 min 4 sec/3 min 23 sec
Medical Grade
No
Number of Outlets
6
Transfer Time
8ms typical : 12ms maximum
NEMA Receptacle Configuration
(6) 5-15R
Automatic Volts Regulation
Yes
Housing Material
Plastic
Standards
FCC Class B Certified; TUV; UL Listed
Housing Color
Black
Fax/Modem Line Protection
Cable Modem; Ethernet; Power
Ports
Coaxial; RJ45; RS232; USB
Usb Compatible
Yes
Data Line Protection
coaxial cable for CATV/SATV/modem/audio-video
Online Thermal Dissipation
48.5 Btu/h
Battery Voltage
12 V
Provided Equipment
User Manual || USB cable
Acoustic Level
45 dBA
Product Certifications
NOM || TUV || ENERGY STAR V2.0 (USA)
Battery Capacity
9.0 Ah
Relative Humidity
0-95 %
Ambient Air Temperature For Storage
-15-45°C
Battery Life
3-5 year(s)
Ambient Air Temperature For Operation
0-40°C
Kw Rating
420 W
Operating Altitude
0...10000 ft
Switching Current Capacity
15 A
Storage Altitude
0-50000 ft
Efficiency At Full Load
88...143 V
Input Frequency
50/60 Hz +/- 3 Hz auto-sensing
Rated Power In Va
700 VA
Efficiency
View Efficiency Graph; action_new_window
Surge Energy Rating
354 J
Included Battery Modules
1
Battery Charge Power
7 W rated
RBC Quantity
1
Max. Capacity Used Information_Stroke
1
Waveform Type
Stepped approximation to a sinewave
Redundant
No
Battery Graph Comments
This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several variables including battery age, battery charge level, environmental conditions and characteristics of the connected load.
Output Connection Type
3 NEMA 5-15R; 3 NEMA 5-15R surge
Maximum Input Current Per Phase
12 A
Filtering
Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: in
Equipment Protection Policy
Lifetime : $150000
Input Connection Type
NEMA
Output Frequency
50/60 Hz +/- 3 Hz sync to mains
Outlet Type
3 NEMA5-15R; 3 NEMA5-15Rsurge

Description

Stay productive during medium-length power outages with this backup system that provides you with abundant battery power. Be green and protected, thanks to energy-conscious features like high-efficiency charging, AVR Bypass and power-saving outlets. Data line surge suppression protects your equipment from surges and spikes traveling over Ethernet and coax cable lines. Automatic Voltage Regulation (AVR) instantly corrects voltage fluctuations, so you can keep working during brownouts and overvoltages. Automatic self-test ensures your system is always ready when you need it. Convenient LCD front panel displays the status of over 20 utility and battery backup conditions.
