  11. Smart UPS, 1.5kVA, Line Interactive, Out: 120V AC In: 120V AC

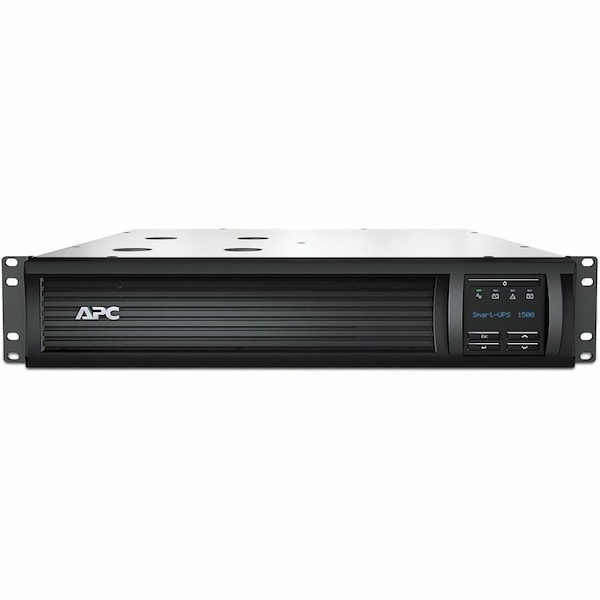

Apc Smart UPS, 1.5kVA, Line Interactive, Out: 120V AC In: 120V AC SMT1500RM2UC - main

Smart UPS, 1.5kVA, Line Interactive, Out: 120V AC In: 120V AC

  • Mfr # SMT1500RM2UC

  • Zoro # G5233286

product price: $940.99
/ea
Free Shipping & Returns

Key Features

UPS Type
Line Interactive
Power Rating
1.5kVA
Mounting
Rack
Wattage
1 kW
Input Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SMT1500RM2UC
Zoro #
G5233286
UPC #
731304284574
Country of Origin
United States

Dimensions

Depth
18 in
Width
18 in
Height
4 in
Cord Length
8 ft
Overall Height
8.6 cm
Overall Width
43.2 cm
Rack Height
2
Overall Depth
47.7 cm
Power Cord Length
8 ft

Details

Item
Smart UPS
UPS Type
Line Interactive
Power Rating
1.5kVA
Mounting
Rack
Wattage
1 kW
Input Voltage
120V AC
Output Voltage
120V AC
Backup Time (Half/Full Load)
35 min/10 min
Outlet Type
(6) UPS/Surge
Medical Grade
No
Number of Outlets
6
Special Features
Automatic Battery and UPS Self-Testing, AVR Boost and AVR Trim Automatic Voltage Regulation, Rack Height 2 U
Automatic Volts Regulation
Yes
Green Environmental Attribute
Product is Rechargeable
Input Current
12 A
NEMA Receptacle Configuration
5-15R
Transfer Time
2 to 4 msec at High Sensitivity
Hz
50/60 Hz ( +/-3 Hz)
Display Type
LCD
Phase
Single
Includes
Rack Mounting Support Rails, USB Cables
Fax/Modem Line Protection
No
Ports
Smart Slot, USB
VA Rating - UPS Systems
1.5 kVA
NEMA Plug Configuration
5-15P
Standards
cULus, ENERGY STAR V2.0 (USA), RoHS
Footnotes
4,7
Capacity - Batteries
1440 VA/1000 W
Battery Type
Lead Acid
Housing Color
Black
Voltage
120
Input Connection
8 ft Cord with NEMA 5-15P Plug
Housing Material
Steel
Typical recharge time
3
Surge Energy Rating
459
Output Power Capacity, VA
1440
Input Connection Type
NEMA 5-15P
Nominal Output Voltage
120V
Interface Port(s)
RJ-45 Serial,SmartSlot,USB
Mount Position
Front
Output Connections
6
Waveform type
Sine wave
Approvals
CSA
Battery Chemistry
Valve Regulated Lead Acid
Thermal Dissipation
65.94 W
Output Frequency
60 Hz
Alarm
Configurable Delay, Low Battery
Network Management
SmartSlot
Operating Humidity
0% - 95%
Battery Life
6 Year
Number of Battery & Surge Outlets
6
Load Capacity
1440 VA/1000 W
Number of Batteries
1
Sound Emission (A-Weighted)
45 dB(A)
Storage Temperature
41°F (5°C) - 235.4°F (113°C)
Battery Energy
1555.2 kJ
Input Frequency
60 Hz
USB (HID Compliant) Port
Yes
Network (RJ-45)
Yes
Maximum Operating Temperature
104°F (40°C)
Maximum Storage Elevation
50000 ft
Status Indicators
LCD Status
Serial Port
Yes
Package Contents
Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect , Installation guide, Rack mounting support rails, USB cable
Maximum Operating Elevation
10000 ft
Typical Battery Recharge Time
3 Hour
Input Voltage Range
82 V AC - 144 V AC
Form Factor
Rack-mountable
Battery Life - Minimum
4 yr
Input Current - Maximum
12 A
Run Time - Full Load
7.15 min
Operating Temperature - Maximum
104 Degrees F
Transfer Time - Maximum
10 msec
Receptacle Configuration
5-15R
Battery Recharge Time
3 hr
Transfer Time - Minimum
6 msec
Number of Outlets - UPS
6
External Battery Compatible
External Battery Pack Compatible
Output Ports Included
USB
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Replacement Battery Part Number
APCRBC159
Operating Temperature - Minimum
32 Degrees F
Manufacturer Warranty
3 yr
Surge Suppression Rating
680 J
Audible Alarm Conditions
Low Battery
Plug Configuration
5-15P
Power Rating - Real
1 kW
Power Rating - Apparent
1.5 kVA
Includes Battery
Battery Included
Frequency
50/60 Hz

Description

Smart UPS, Line Interactive, Power Rating 1.5 kVA, Wattage 1 kW, Input Voltage 120V AC, Output Voltage 120V AC, Backup Time (Half/Full Load) 35 min/10 min, Mounting Rack, Outlet Type (6) UPS/Surge, Number of Outlets 6, Medical Grade Not Medical Grade Approved, NEMA Receptacle Configuration 5-15R, NEMA Plug Configuration 5-15P, Automatic Volts Regulation Yes, Fax/Modem Line Protection No, Transfer Time 2 to 4 msec at High Sensitivity, Width 17 in, Depth 18 in, Height 4 in, Cord Length 8 ft
