  11. Smart UPS, 1kVA, Line Interactive, Out: 120V AC In: 120V AC

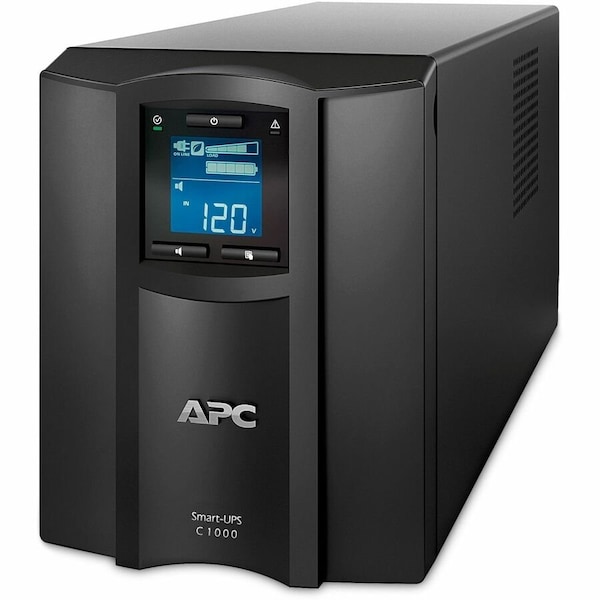

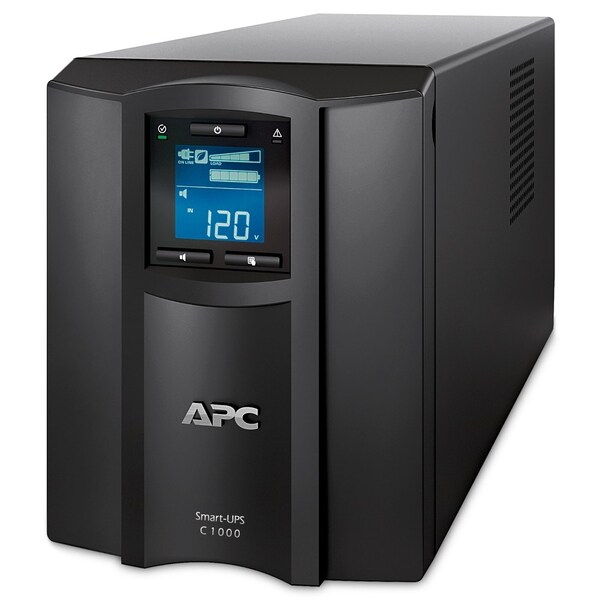

Apc Smart UPS, 1kVA, Line Interactive, Out: 120V AC In: 120V AC SMC1000C - main

Smart UPS, 1kVA, Line Interactive, Out: 120V AC In: 120V AC

  • Mfr # SMC1000C

  • Zoro # G5221842

product price: $469.99
/ea
Free Shipping & Returns

Key Features

VA Rating - UPS Systems
1.0 kVA
UPS Type
Line Interactive
Power Rating
1kVA
Mounting
Rack/Tower
Wattage
600 W
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SMC1000C
Zoro #
G5221842
UPC #
731304291879
Country of Origin
Philippines

Dimensions

Height
8 in
Width
17 in
Cord Length
6 ft
Depth
17 in
Overall Height
21.9 cm
Overall Width
17.1 cm
Power Cord Length
6 ft
Overall Depth
43.9 cm

Details

VA Rating - UPS Systems
1.0 kVA
Item
Smart UPS
UPS Type
Line Interactive
Power Rating
1kVA
Mounting
Rack/Tower
Wattage
600 W
Input Voltage
120V AC
Output Voltage
120V AC
Backup Time (Half/Full Load)
19 min/7 min
Outlet Type
(8) UPS/Surge
Medical Grade
No
Number of Outlets
8
Ports
RJ45 Serial, USB
Footnotes
2,4
Green Environmental Attribute
Product is Rechargeable
Input Current
8.3 A
Hz
50/60 Hz
Phase
Single
Includes
USB Cables
Fax/Modem Line Protection
Yes
NEMA Plug Configuration
5-15P
Standards
cULus, ENERGY STAR V2.0 (USA), RoHs
Automatic Volts Regulation
Yes
Transfer Time
8 to 10 msec
NEMA Receptacle Configuration
5-15R
Display Type
LCD
Special Features
Advanced Battery Management, High Efficiency Green Mode, LCD Display with Status and Measurement Information, Network Grade Power Conditioning, Pure Sine-Wave Output
Housing Color
Black
Battery Type
Lead Acid
For Use with
Network Device, Router, POS Terminal, Network Hub, Server, Switch
Capacity - Batteries
1000 VA/600 W
Voltage
120
Input Connection
6 ft Cord with NEMA 5-15P Plug
Housing Material
Steel
Online Thermal Dissipation
175 Btu/h
Input Frequency
50/60 Hz +/- 3 Hz auto-sensing
Software Package
SmartConnect software for remote power monitoring feature availability varies by terms of use
Acoustic Level
41 dBA
Product Certifications
cULus || ENERGY STAR V2.0 (USA)
Ambient Air Temperature For Storage
-15-45°C
Other Output Voltages
110 V || 125 V
Kw Rating
600 W
Ambient Air Temperature For Operation
0-40°C
Relative Humidity
0-95 %
Mounting Location
front
Storage Altitude
0-50000 ft
Number Of Cables
1
Efficiency At Full Load
85...136 V adjustable || 93...130 V
Provided Equipment
USB cable
Additional Specification
cloud-enabled monitoring
Usb Compatible
Yes
Harmonic Distortion
Less than 5%
Battery Life
3-5 year(s)
Other Input Voltages
110 V || 125 V
Free Slots
0
Rated Power In Va
1000 VA
Alarm
alarm when on battery : distinctive low battery alarm : configurable delays
Control Panel
Multi-function LCD status and control console
Communication Port Support
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
Operating Altitude
0...10000 ft
Waveform Type
Sine Wave
Load Capacity
1000 VA/600 W
Input Voltage Range
93 V AC - 130 V AC
Number of Battery & Surge Outlets
8
Form Factor
Tower
Battery Chemistry
Valve Regulated Lead Acid
Network (RJ-45)
Yes
Hot Swappable
Yes
Package Contents
Smart-UPS C 1000VA LCD 120V with SmartConnect , USB cable
Surge Energy Rating
680 J
Application/Usage
POS Terminal, Network Device, Network Hub, Switch, Router, Server
Typical Battery Recharge Time
3 Hour
Surge Suppression Rating
680 J
Operating Temperature - Minimum
32 Degrees F
Battery Life - Minimum
3 yr
Operating Temperature - Maximum
104 Degrees F
Number of Outlets - UPS
8
Transfer Time - Maximum
10 msec
Output Ports Included
USB
Audible Alarm Conditions
Low Battery
Frequency
50/60 Hz
Battery Recharge Time
3 hr
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Includes Battery
Battery Included
Input Current - Maximum
8.3 A
Power Rating - Apparent
1 kVA
Plug Configuration
5-15P
Power Rating - Real
600 W
Run Time - Full Load
9.15 min
Replacement Battery Part Number
APCRBC142
Receptacle Configuration
5-15R
Transfer Time - Minimum
6 msec
External Battery Compatible
Not External Battery Pack Compatible
Manufacturer Warranty
2 yr

Description

Smart UPS, Line Interactive, Power Rating 1 kVA, Wattage 600 W, Input Voltage 120V AC, Output Voltage 120V AC, Backup Time (Half/Full Load) 19 min/7 min, Mounting Rack/Tower, Outlet Type (8) UPS/Surge, Number of Outlets 8, Medical Grade Not Medical Grade Approved, NEMA Receptacle Configuration 5-15R, NEMA Plug Configuration 5-15P, Automatic Volts Regulation Yes, Fax/Modem Line Protection Yes, Transfer Time 8 to 10 msec, Width 7 in, Depth 17 in, Height 8 in, Cord Length 6 ft, Display Type LCD
