  11. Smart UPS, 750VA, Line Interactive, Out: 120V AC In: 120V AC

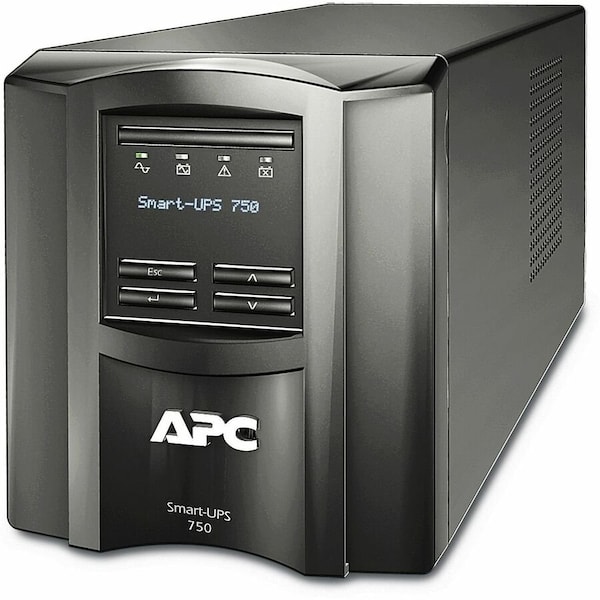

Apc Smart UPS, 750VA, Line Interactive, Out: 120V AC In: 120V AC SMT750C - main

Smart UPS, 750VA, Line Interactive, Out: 120V AC In: 120V AC

  • Mfr # SMT750C

  • Zoro # G5233261

product price: $429.99
/ea
Free Shipping & Returns

Key Features

VA Rating - UPS Systems
750.0 VA
UPS Type
Line Interactive
Power Rating
750VA
Mounting
Floor
Wattage
500 W
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SMT750C
Zoro #
G5233261
UPC #
731304269052
Country of Origin
Philippines

Dimensions

Cord Length
6 ft
Depth
14 in
Width
14 in
Height
6 in
Overall Width
13.8 cm
Overall Height
16.1 cm
Overall Depth
36.9 cm
Power Cord Length
6 ft

Details

Item
Smart UPS
VA Rating - UPS Systems
750.0 VA
UPS Type
Line Interactive
Power Rating
750VA
Mounting
Floor
Wattage
500 W
Input Voltage
120V AC
Output Voltage
120V AC
Backup Time (Half/Full Load)
15 min/5 min
Outlet Type
(6) UPS/Surge
Medical Grade
No
Number of Outlets
6
Input Current
6.3 A
Includes
USB Cables
Standards
cULus, ENERGY STAR V2.0 (USA), RoHS
Green Environmental Attribute
Product is Rechargeable
NEMA Receptacle Configuration
5-15R
NEMA Plug Configuration
5-15P
Display Type
LCD
Fax/Modem Line Protection
Yes
Ports
Smart Slot, USB
Phase
Single
Transfer Time
2 to 4 msec at High Sensitivity
Footnotes
4,7
Hz
50/60 Hz ( +/-3 Hz)
Automatic Volts Regulation
Yes
Battery Type
Lead Acid
Capacity - Batteries
750 VA/500 W
Housing Color
Black
Voltage
120
Input Connection
6 ft Cord with NEMA 5-15P Plug
Housing Material
Steel
Kw Rating
500 W
Relative Humidity
0-95 %
Storage Altitude
0-50000 ft
Control Panel
Multi-function LCD status and control console
Ambient Air Temperature For Storage
-15-45°C
Other Output Voltages
110 V || 125 V
Presentation
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Software Package
SmartConnect software for remote power monitoring feature availability varies by terms of use
Online Thermal Dissipation
90 Btu/h
Battery Life
3-5 year(s)
Communication Port Support
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
Operating Altitude
0...10000 ft
Battery Capacity
7.0 Ah
Battery Voltage
24 V
Acoustic Level
41 dBA
Mounting Location
front
Alarm
alarm when on battery : distinctive low battery alarm : configurable delays
Harmonic Distortion
Less than 5%
Ambient Air Temperature For Operation
0-40°C
Number Of Cables
1
Efficiency At Full Load
75...154 V adjustable || 82...144 V
Input Frequency
50/60 Hz +/- 3 Hz auto-sensing
Product Certifications
cULus || ENERGY STAR V2.0 (USA)
Additional Specification
cloud-enabled monitoring
Provided Equipment
USB cable
Rated Power In Va
750 VA
Free Slots
1
Usb Compatible
Yes
Other Input Voltages
110 V || 125 V
Number of Battery & Surge Outlets
6
Input Voltage Range
75 V AC - 154 V AC
Form Factor
Tower
Typical Battery Recharge Time
3 Hour
Surge Energy Rating
540 J
Hot Swappable
Yes
Battery Chemistry
Valve Regulated Lead Acid
Waveform Type
Sine Wave
Package Contents
Smart-UPS 750VA LCD 120V with SmartConnect , USB cable
Load Capacity
750 VA/500 W
Battery Life - Minimum
3 yr
Surge Suppression Rating
540 J
Frequency
50/60 Hz
Operating Temperature - Maximum
104 Degrees F
Audible Alarm Conditions
Low Battery
Output Ports Included
USB
Receptacle Configuration
5-15R
Run Time - Full Load
4.57 min
Transfer Time - Maximum
10 msec
Operating Temperature - Minimum
32 Degrees F
External Battery Compatible
Not External Battery Pack Compatible
Manufacturer Warranty
3 yr
Transfer Time - Minimum
6 msec
Replacement Battery Part Number
RBC48
Plug Configuration
5-15P
Input Current - Maximum
6.3 A
Power Rating - Apparent
750 VA
Includes Battery
Battery Included
Battery Recharge Time
3 hr
Number of Outlets - UPS
6
Power Rating - Real
500 W
Automatic Voltage Regulation
Includes Automatic Voltage Regulation

Description

Smart UPS, Line Interactive, Power Rating 750 VA, Wattage 500 W, Input Voltage 120V AC, Output Voltage 120V AC, Backup Time (Half/Full Load) 15 min/5 min, Mounting Floor, Outlet Type (6) UPS/Surge, Number of Outlets 6, Medical Grade Not Medical Grade Approved, NEMA Receptacle Configuration 5-15R, NEMA Plug Configuration 5-15P, Automatic Volts Regulation Yes, Fax/Modem Line Protection Yes, Transfer Time 2 to 4 msec at High Sensitivity, Width 5 in, Depth 14 in, Height 6 in, Cord Length 6 ft

Restrictions

Hazardous material
